Dot Matrix MAX7219 is arduino projects,for science kits for kids,science projects, robot car on high school, primary school, secondary school.
A single module can drive an 8 * 8 common cathode lattice.
Module Operating voltage: 5V.
Module size: 5 cm long X 3.2 cm wide X 1.5 cm high.
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed.
Module with input and output interfaces, supports multiple modules cascade.
Led colour:Red.
The module left as an input port to the output port on the right.
The control of a single module, simply input port to the CPU.
Specifications
The module has 6 standard 2.54mm pitch pins
Pin Description
VCC : 5V
GND : 0V
DIN : Connects to MOSI
CS : Slave select
CLK : Clock - SCK
8x8 Red LED Matrix
Module Operating voltage: 5V
Module size: 5 x 3.2 x 1.5cm (L x W x H)
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
Module with input and output interfaces, supports multiple modules cascade
Additional Information
Device
Display Module
Type
8X8 | LED Dot | Matrix

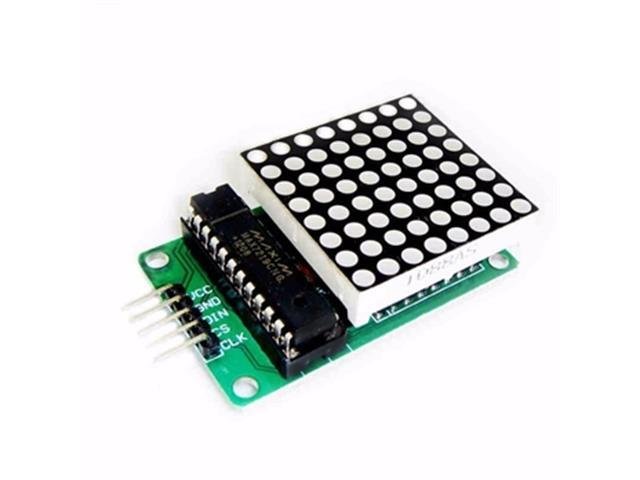

Elevate your projects with the HKD 1XDOT MATRIX MODULE MAX7219, a versatile 8x8 LED dot matrix display perfect for Arduino and robotics. With easy cascading capabilities and a compact design, this module simplifies your science projects while delivering vibrant red visuals. Unlock creativity in classrooms and DIY projects—power your ideas with this reliable display module!
