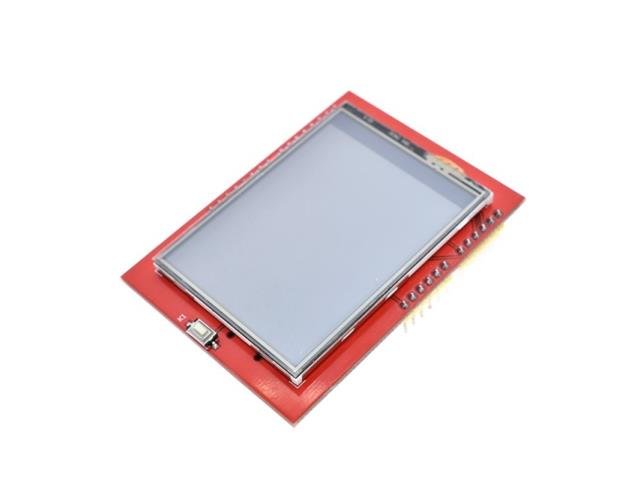

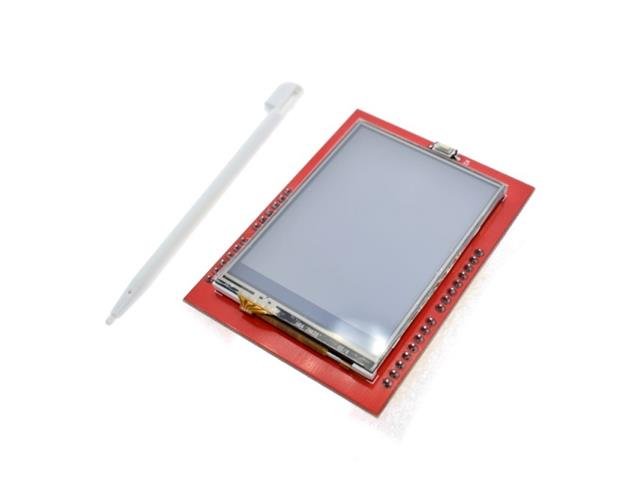

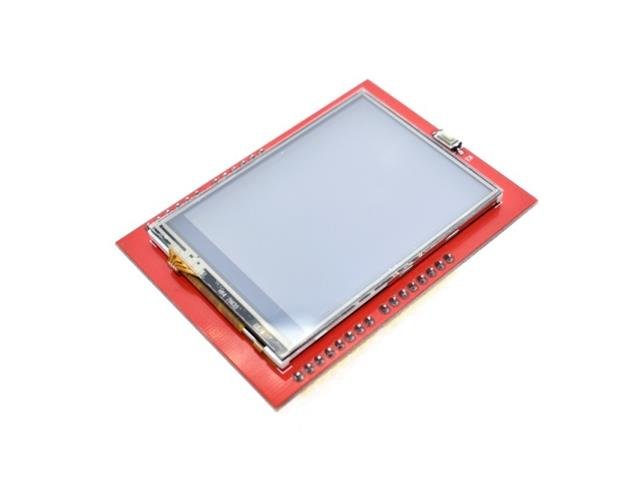

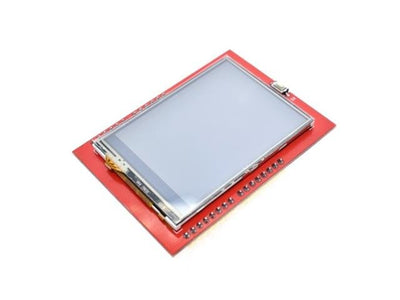

2,4IN TFT LCD Touch Shield with Micro SD Socket. Works with UNO and MEGA- Not Leonardo
2,4IN TFT LCD Touch Shield
Overview
Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
Features
2.4inch diagonal LCD TFT Display
240×320 resolution, 18-bit (262,000) color
HX8347G DRIVER
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
Works with any Arduino ‘328 or Mega (Leonardo not supported yet)
5V compatible. Use with 3.3V or 5V logic
Onboard 3.3V 300mA LDO regulator
4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
4-wire resistive touchscreen
Additional Information
Device
LCD Touch Shield
Type
2,4IN | TFT | LCD
Elevate your Arduino projects with the HKD 2.4IN TFT LCD Touch Shield. Featuring a vibrant 240x320 resolution and an integrated microSD card slot, this user-friendly touchscreen display offers stunning visuals and easy control for all your creative endeavors. Compatible with Arduino UNO and MEGA, this shield transforms your designs into interactive experiences, making it a must-have for every maker.
