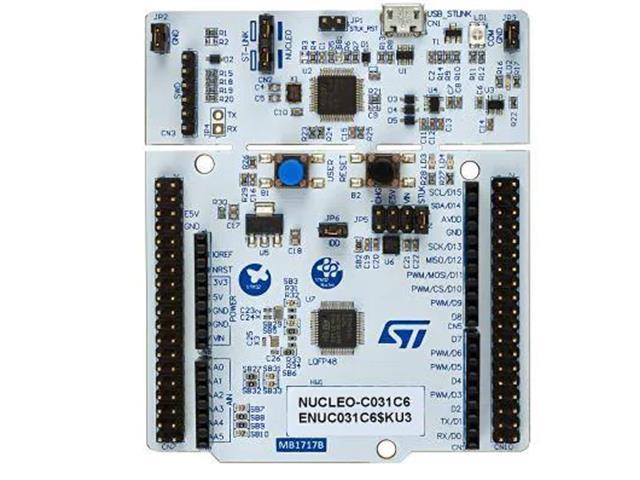

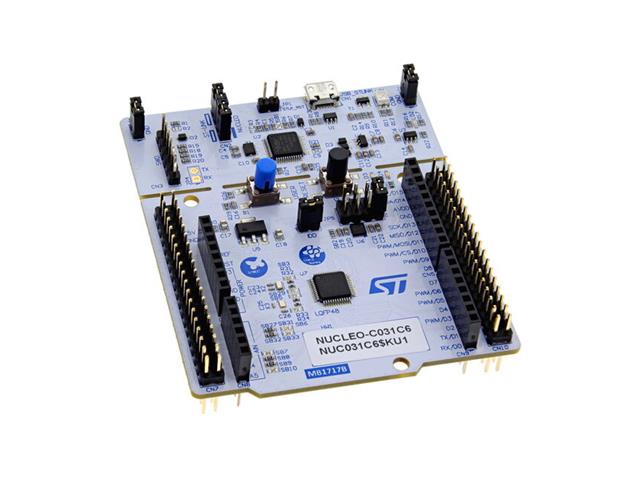

NUCLEO-C031C6

SKU: NUCLEO-C031C6

BRAND: STMicroelectronics


Development Board STM32 Nucleo-64, MCU 32-Bit LQFP48,ARM Cortex-M0+, ST-LINK/V2-1 on USB Micro-B, 32.768 kHz Crystal Oscillator, 48MHz HSE, Arduino® Uno V3 Expansion Connector, ST Morpho Extension Pin Headers for Full Access to all STM32 I/Os

Developement Board STM32 Nucleo-64

Overview

The STM32 Nucleo-64 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features provided by the STM32 microcontroller. For the compatible boards, the internal or external SMPS significantly reduces power consumption in Run mode.

The ARDUINO® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features

Common features

  • STM32 microcontroller in an LQFP64 or LQFP48 package
  • 1 user LED shared with ARDUINO®
  • 1 user and 1 reset push-buttons
  • 32.768 kHz crystal oscillator
  • Board connectors:
    • ARDUINO® Uno V3 expansion connector
    • ST morpho extension pin headers for full access to all STM32 I/Os
  • Flexible power-supply options: ST-LINK USB VBUS or external sources
  • On-board ST-LINK debugger/programmer with USB re-enumeration capability:
    mass storage, Virtual COM port, and debug port
  • Comprehensive free software libraries and examples available with the
    STM32Cube MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs)
    including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Board-specific features

  • External SMPS to generate Vcore logic supply
  • 24 MHz or 48 MHz HSE
  • User USB Device full speed, or USB SNK/UFP full speed
  • Cryptography
  • Board connectors:
    • External SMPS experimentation dedicated connector
    • USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK
    • USB Type-C® user connector
    • MIPI® debug connector

Downloads

Additional Information

Device STM32 Nucleo-64
Type Developement Board
