SME RASPBERRY PI LCD ADAPTER KIT

SKU: SME RASPBERRY PI LCD ADAPTER KIT

BRAND: Itead Studio

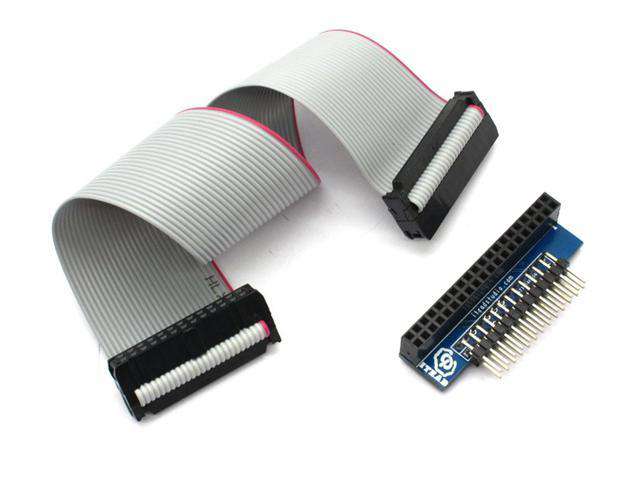

Adapter Board Kit for Raspberry Pi Board to LCD Screen Module

Overview

To facilitate the use of Raspberry Pi and screen module to work together, we specifically developed a simple adapter board and customized a batch of 26-pin (2X13) cable . Simply insert the screen module into the adapter board, then connect the board and Raspberry Pi plate with cable, thus the hardware connection is done, saving the trouble of corresponding connection of each pin.

This adapter kit is compatible with ITDB02-2.2, ITDB02-2.4E and ITDB02-2.8. NOT compatible with ITDB02-3.2S , ITDB02-3.2WD.

Features

Connection
Pin of ITDB02 LCD Pins of Raspberry Raspberry Pi Pin N.O. Name
DB8 D0 11 GPIO0
DB9 D1 12 GPIO1
DB10 D2 13 GPIO2
DB11 D3 15 GPIO3
DB12 D4 16 GPIO4
DB13 D5 18 GPIO5
DB14 D6 22 GPIO6
DB15 D7 7 GPIO7
CS D10 24 CE0
RS D8 3 SDA0
WR D9 5 SCL0
RST D11 26 CE1
T_CLK D12 19 MOSI
T_CS D13 21 MISO
T_DIN D14 23 SCLK
T_DOUT D15 8 TXD
T_IRQ D16 10 RXD
VCC +5V  2 +5V
GND GND 6 GND



    Specification

    • Board Color : Green
    • Board Thickness : 1.6mm
    • Base Material : FR-4
    • Board Size : 51.5×21.93×11.55mm
    • Surface Finishing : HASL
    • Weight : 15g
