ESP32-S3 Microcontroller, 2.4 Ghz Wi-fi Development Board, Dual-core Processor With Frequency Up To 240 MHZ
2.4 Ghz Wi-Fi Development Board
Overview

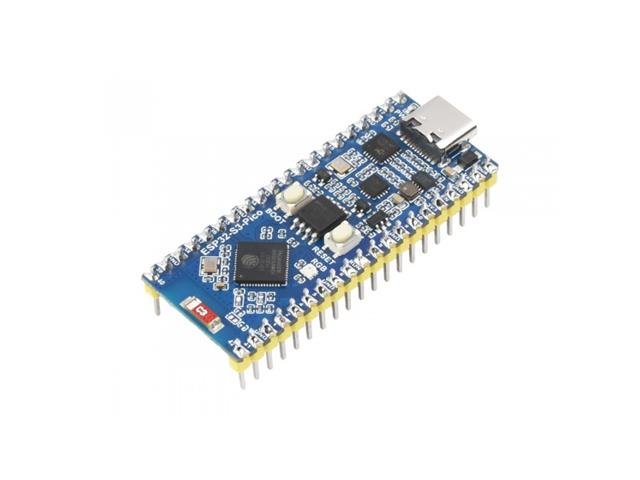

The ESP32-S3-Pico is a compact-size microcontroller development board with multiple digital interfaces.
Adopts ESP32-S3R2 as the main chip, which is equipped with a dual-core Xtensa 32-bit LX7 processor with 240MHz running frequency, with built-in 512 KB SRAM (TCM) and 2MB PSRAM; Onboard CH343 and CH334 chips for USB and UART development via USB-C port; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product.
Features
Adopts ESP32-S3R2 chip with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance.
Type-C connector, easier to use
Onboard CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A
27 × multi-function GPIO pins
Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-bit ~ 16-bit camera interface), LCD interfaces (8-bit ~ 16-bit parallel RGB, I8080, MOTO6800), etc. to achieve various functions flexibly
Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
Supports Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
Additional Information
Device
Development Board
Type
2.4 Ghz | Wi-Fi
Unlock your creativity with the WVS ESP32-S3 MCU Wi-Fi Dev Board, featuring a powerful dual-core processor and seamless 2.4GHz Wi-Fi connectivity. Ideal for IoT and AI projects, this compact board offers rich interfaces, 2A power support, and easy USB-C connectivity, making development efficient and flexible. Perfect for both beginners and experienced developers looking to enhance their projects!
