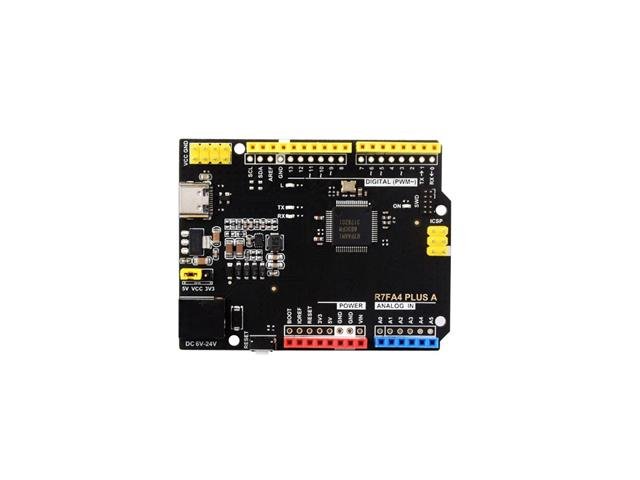

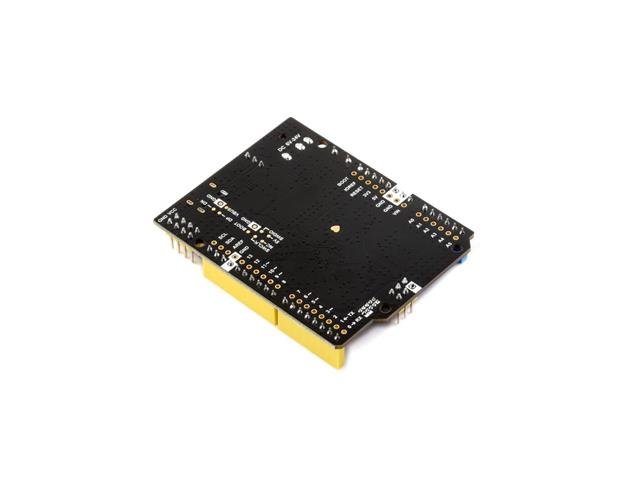

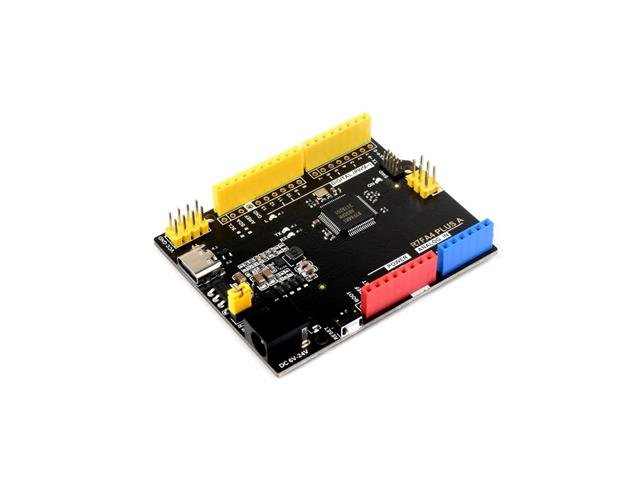

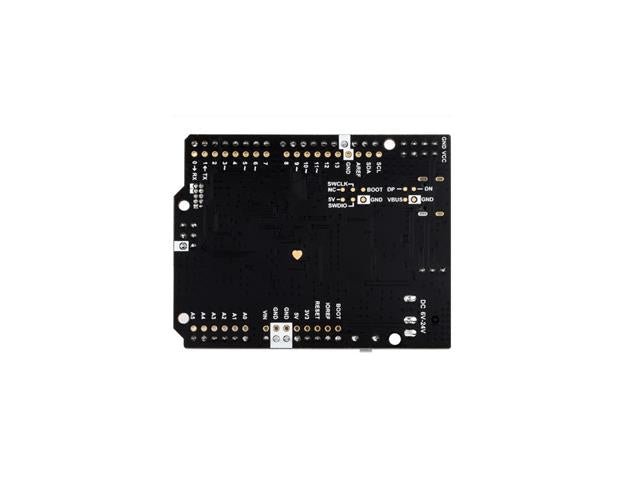

Overview
The R7FA4 Plus development platform provides users with an economical, flexible and convenient way to realize more creative ideas. On the hardware, it features Renesas Electronics' powerful 32-bit microcontroller R7FA4M1AB3CFM, which has expanded memory, peripherals, and faster clocks, enabling it to easily handle complex projects.
Features
- Based on R7FA4M1AB3CFM, and is compatible with Arduino UNO R4 Minima.
- Utilizes Renesas Electronics' RA4M1 (Arm® Cortex®-M4) microcontroller, with a main frequency of 48MHz.
- Equipped with 256 kB Flash and 32 kB RAM, the expanded memory can easily handle complex projects.
- The R7FA4 Plus development board adds a 12-bit DAC, CAN bus and operational amplifiers, providing expanded functionality and flexibility for designs.
- Onboard 5V/3.3V headers for easy voltage switching, allowing the use of more expansion modules.
- Flexible power options, supporting USB-C power supply or external input power VIN (6V<=VIN<=24V).
- Onboard power indicator (PWR), USER LED, serial port receive indicator (RX) and transmit indicator (TX), making it easy to monitor the working status of the development board.
- Onboard ICSP interface, can be used as an SPI interface.

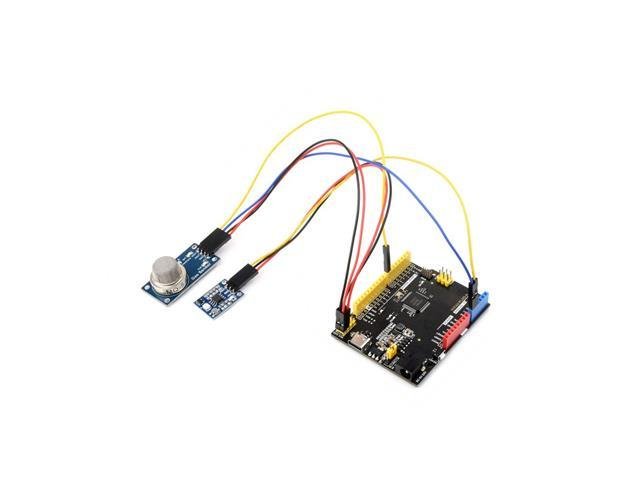

- Supports user soldering of corresponding interface insertion into the experimental board.

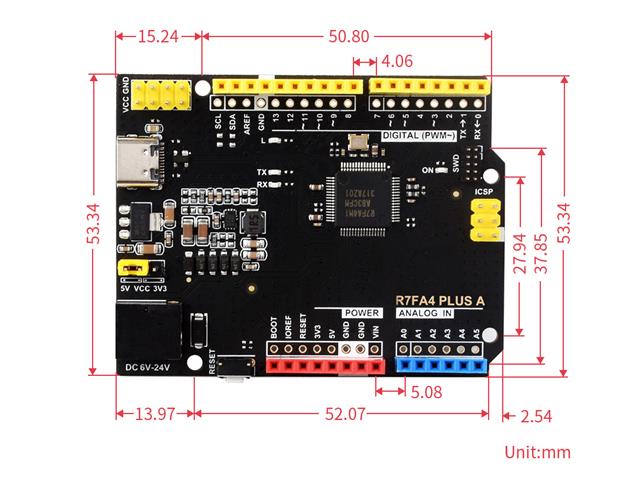

Specifications
|
MICROCONTROLLER
|
R7FA4
(32-bit ARM Cortex-M4)
|
|
|
CLOCK FREQUENCY
|
R7FA4: 48MHz
|
|
|
STORAGE
|
R7FA4: 256kB Flash, 32kB RAM
|
|
|
WIRELESS COMMUNICATION
|
None
|
|
|
OPERATING VOLTAGE
|
Options for 5V/3.3V, support more shields
|
|
|
POWER INPUT
|
6~24V
|
|
|
RESET BUTTON
|
Lateral, easier to use when connecting with shield
|
|
|
IO PIN
OUTPUT CURRENT
|
8mA
|
|
|
DIGITAL PINS
|
14
|
|
|
ANALOG PINS
|
6
|
|
|
DAC
|
2
|
|
|
PWM
|
6
|
|
|
UART
|
1
|
|
|
I2C
|
1
|
|
|
SPI
|
1
|
|
|
CAN
|
1
|
|
|
DC JACK
|
Low profile, shields won't be blocked anymore while connecting
|
|
|
POWER OUTPUT HEADER
|
Provides 5V OR 3.3V power output and common-grounding with other boards
|
|
|
5V POWER OUTPUT
|
Up to 2000mA Max, features higher driving capability
|
|
|
EXPERIMENTAL BOARD
|
Support, the solder pad is provided for DIY interfaces to connect with the experimental board
|
|
