WVS USB/UART DEBUG FOR RASPB PI5 - Communications - 5906623425136

WVS USB/UART DEBUG FOR RASPB PI5

Name: WVS USB/UART DEBUG FOR RASPB PI5 - Communica [Part No: WVS USB/UART DEBUG FOR RASPB PI5]
Brand: Waveshare
SKU: WVS USB/UART DEBUG FOR RASPB PI5
Price: 77.39 ZAR
Availability: InStock

SKU: WVS USB/UART DEBUG FOR RASPB PI5

BRAND: Waveshare

R 89.00_{(inc VAT)}
R 77.39_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Communications

Category: Iot, USB to UART Debugger Module

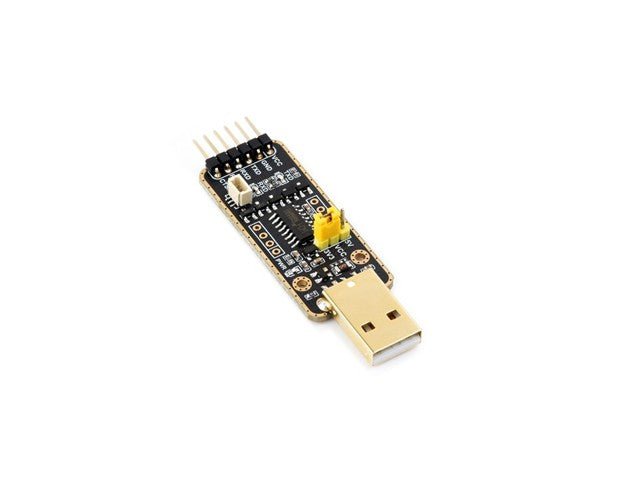

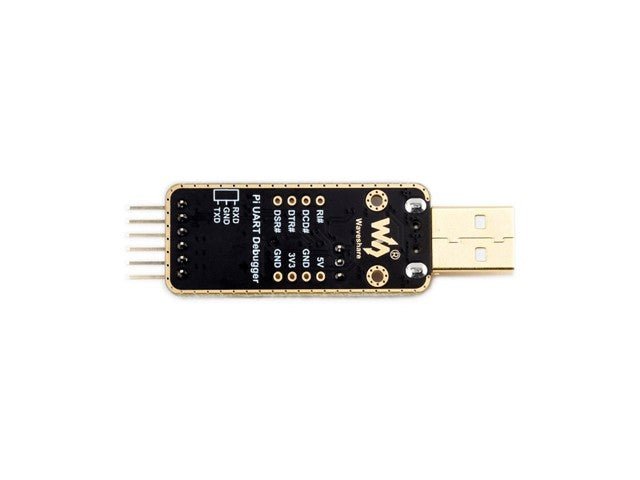

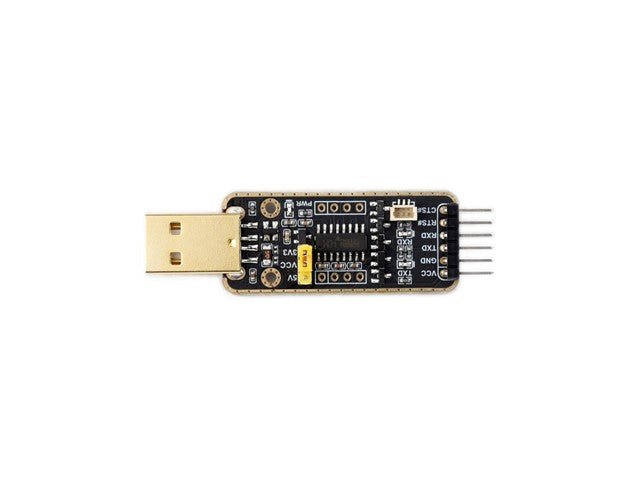

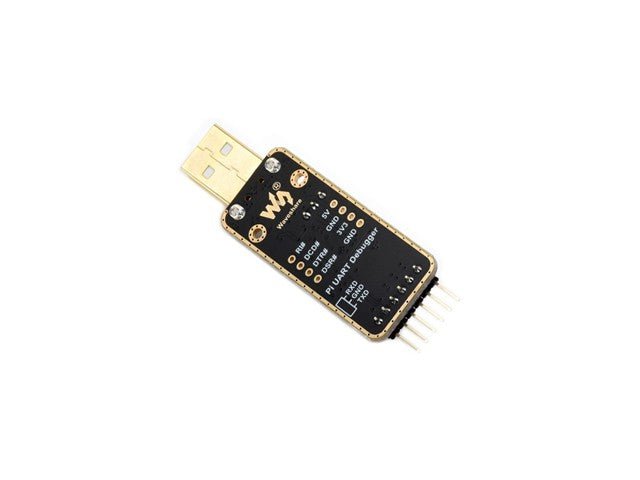

USB to UART Debugger Module for Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission

USB to UART Debugger Module

Overview

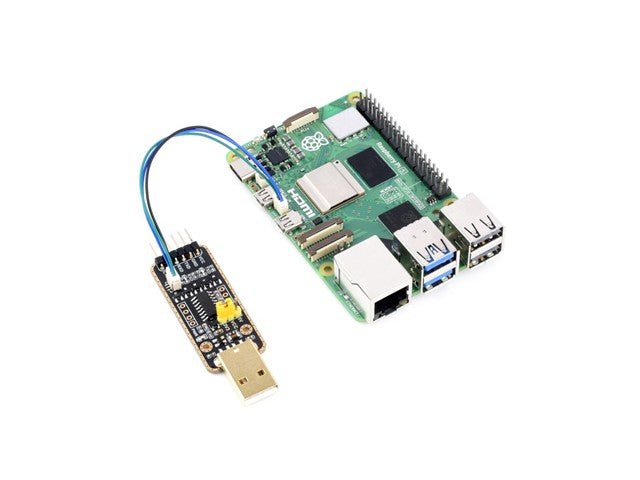

Pi UART Debugger, a serial module based on CH343 for Raspberry Pi 5, is suitable for Raspberry Pi 5 communication debugging, supports multiple wiring methods, and is compatible with various systems, With features of anti-surge, ESD protection, and immersion gold design, it also supports Mac, Linux, Android and Windows 7/8/8.1/10/11.

Features

Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
Adopts double-sided black immersion gold process, which is durable and has a good look

Specifications

HOST INTERFACE	USB
DEVICE INTERFACE	UART
COMMUNICATION RANGE	50bps ~ 6Mbps
USB DEVICE INTERFACE	connector: USB Type-A; protection: self-recovery fuse, ESD protection
UART INTERFACE	connector: 6pin right-angle pinheader; 3pin connector protection: IO protection diode

Additional Information

Device	Debugger Module
Type	USB to UART
References	wiki/Pi_UART_Debugger

Unlock seamless communication with the WVS USB/UART Debug Module for Raspberry Pi 5. This versatile tool features high baud rate transmission and robust ESD protection, ensuring stable performance across Mac, Linux, and Windows systems. Perfect for debugging, it supports multiple wiring methods and offers reliable, safe operation to enhance your Raspberry Pi projects.
