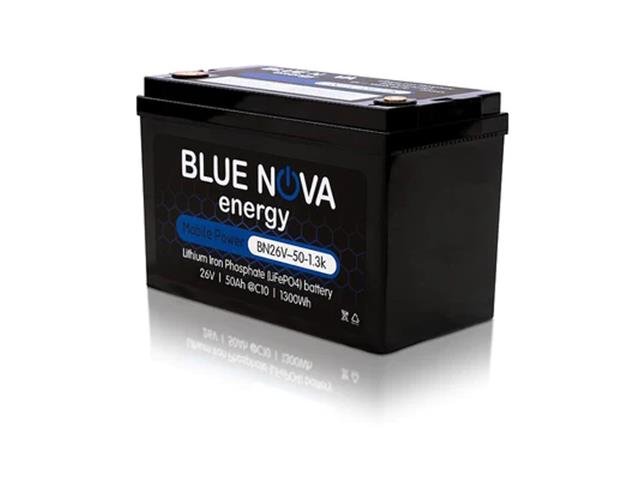

Bluenova Lithium Iron Phosphate (LiFePO4) Rechargeable Battery, OPV RANGE:23.2V~28.8VDC, Over-current Prot:100A, Over Voltage Cut-OUT:31.2V, Under-VLTG CUT-OUT:20.0V, Charge Current:37A Continuous, BMS, Efficiency 96-99%@C1, (327x172x218mm), IP56,13.5Kg
Lithium Iron Phosphate Rechargeable Battery
Features
- Ultra-reliable Lithium Iron Phosphate (LiFePO4) technology
- Integrated battery management System (BMS)
- Light weight & compact
- Water & dust resistant (IP56)
- Highly durable ABSenclosure
- Compatible with leading 24V inverters & chargers
Specifications
GENERAL INFORMATION
- Battery Type : LiFePO4 (Lithium Iron Phosphate)
- Usable Capacity : 1300 Wh @C10, 25°C
- Nominal Voltage : 26 VDC
- Operating Voltage Range : 23.2 VDC – 28.8 VDC
- Operating Temperature Range : Charge: 0°C – 45°C | Discharge: -20°C – 55°C
- Cycle Life @ 100% DoD : > 2000 cycles (1300 Wh @C10, 25°C)
- Cycle Life @ 80% DoD : > 3000 cycles (1040 Wh @C10, 25°C)
- Cycle Life @ 50% DoD : > 5000 cycles (650 Wh @C10, 25°C)
- Dimensions (mm) : 327 x 172 x 218mm (W x D x H)
- Weight (kg) : 13.5 kg
- Warranty Period : 3 Years
- Terminal : M8 (female)
CHARGE / DISCHARGE
- Bulk Voltage : 28.4 – 28.8VDC
- Float Voltage : 27.6 VDC
- Discharge Voltage (min.) : 23.2 V
- Charge Current (max.) : Recommended: 10A | Maximum: 37A continuous
- Discharge Current (max.) : Recommended: 10A | Maximum: 50A continuous | Peak: 100A (<5 seconds)
- Self-discharge Rate : < 3% per month
- Charge & Discharge Efficiency : 96% - 99% @C1
PROTECTION
- Environmental Protection : IP56
- Over-current Protection : 100 A
- Over-voltage Cut-out : 31.2 V
- Under-voltage Cut-out : 20.0 V
Downloads
Additional Information
| Device |
Battery |
| Type |
Lithium Iron | Phosphate | Rechargeable |
