VICT ORION 24/12 10A

Name: VICT ORION 24/12 10A - Communica [Part No: VICT ORION 24/12 10A]
Brand: Victron
SKU: VICT ORION 24/12 10A
Price: 550 ZAR
Availability: OutOfStock

SKU: VICT ORION 24/12 10A

BRAND: Victron

Sold Out
R 632.50_{(inc VAT)}
R 550.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Power Supplies

Category: DC DC Converters, Loadshedding

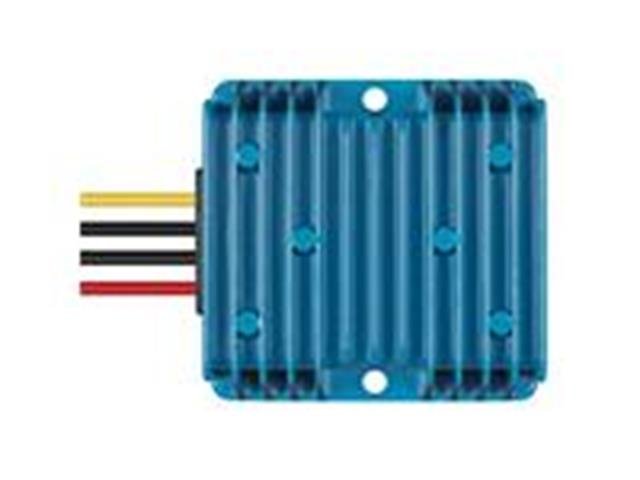

Victron Encapsulated DC-DC Converter 24V 10A 120W, I/P Voltage Range: 15→40VDC, O/P Voltage 12VDC, 1,5mm² 15 AWG, IP67, {74x74x32mm}, 300Kg

Encapsulated DC-DC Converter

Specifications

Input voltage range : 15-40VDC
Under voltage shutdown : 13V
Under voltage restart : 14V
No load current at 24V : 1mA
DC output voltage : 12V +/- 3%
Maximum continuous output current : 5A
Efficiency : 93%
Ripple & Noise : 75mVpp
Operating temperature range (derate 3% per °C above 40°C) : -40 to +70°C (full rated output up to 40°C)
Overload protection : Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof : Yes
Protection against reverse polarity connection : With external fuse or circuit breaker (not included)

ENCLOSURE

Material & Colour : Aluminium (blue RAL 5012)
Protection category : IP67
DC connection : Two input and two output cables, length 1,8m
Cable cross section, input : 0,8mm2 (18 AWG)
Cable cross section, output : 0,8mm2 (18 AWG)
Weight (kg) : 50 g
Dimensions (h x w x d in mm) : 25 x 43 x 20

Downloads

Datasheet - VICT ORION 24/12 10A

Additional Information

Device	Converter
Type	Encapsulated \| DC-DC
