VICT ORION-TR 24/48 2,5A

Name: VICT ORION-TR 24/48 2,5A - Communica [Part No: VICT ORION-TR 24/48 2,5A]
Brand: Victron
SKU: VICT ORION-TR 24/48 2,5A
Price: 969 ZAR
Availability: InStock

SKU: VICT ORION-TR 24/48 2,5A

BRAND: Victron

In Stock
R 1,114.35_{(inc VAT)}
R 969.00_{(ex VAT)}

Collections: Loadshedding, Power

Type: Solar

Category: Loadshedding, Solar Accessories

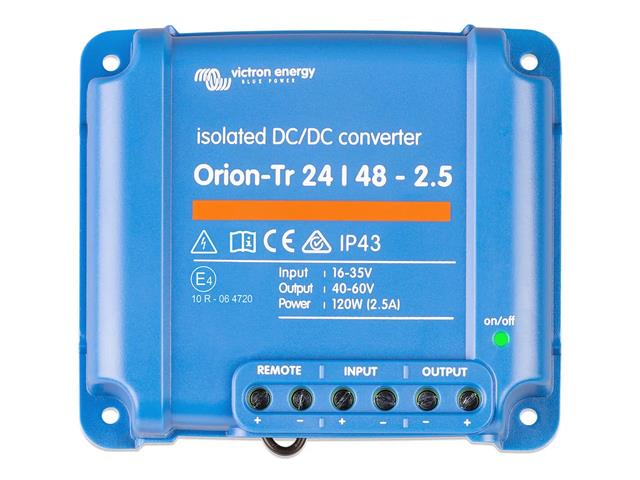

Victron Isolated DC-DC Converter 24V 2,5A 120W, I/P Votage Range: 16→35VDC, O/P Voltage Adjust Range:40→60VDC, 6mm² AWG6, IP43, {100x113x47mm}, 0.42Kg

Isolated DC-DC Converter

Feature

Isolated converters : 110 – 120 W : Orion-Tr 24/48-2,5 (120 W)
Input voltage range (1) : 16-35 V
Under voltage shut down : 14 V
Under voltage restart : 15 V
Nominal output voltage : 48.2 V
Output voltage adjust range : 40-60 V
Output voltage tolerance : +/- 0.2 V
Output noise : 2mV rms
Cont. output current at nominal
output voltage and 25 °C : 2.5 A
Maximum output current (10 s) at nominal output voltage : 3.0 A
Short circuit output current : 19 A
Cont. output power at 25 °C : 120 W
Cont. output power at 40 °C : 115 W
Efficiency : 88 %
No load input current : < 120 mA
Galvanic isolation : 200 V dc between input, output and case
Operating temperature range : -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity : Max. 95 % non-condensing
DC connection : Screw terminals
Maximum cable cross-section : 6 mm2 AWG10
Weight : 0,42 kg (1 lb)
Dimensions hxwxd : 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 inch)

Downloads

Datasheet - VICT ORION-TR 24/48 2,5A

Additional Information

Device	Converter
Type	Isolated \| DC-DC
