T232RL 3.3V / 5.5V FTDI USB TO TTL Serial Converter Adapter Module For Arduino. NB. This Chip Is Not Original, Does Not Have EEPROM, And Cannot Invert The Signals. USB TYPE-C Interface

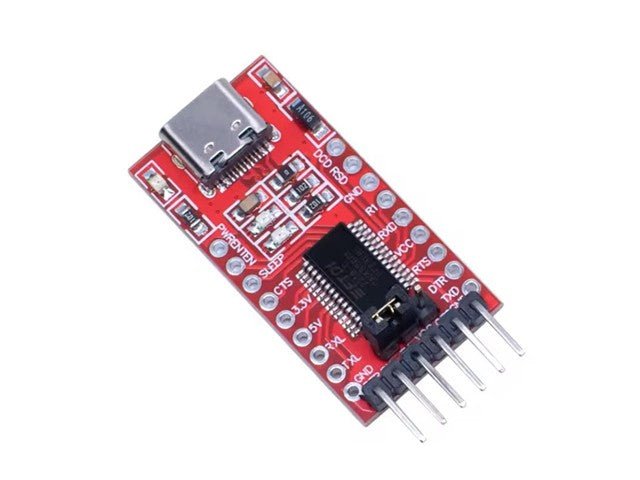

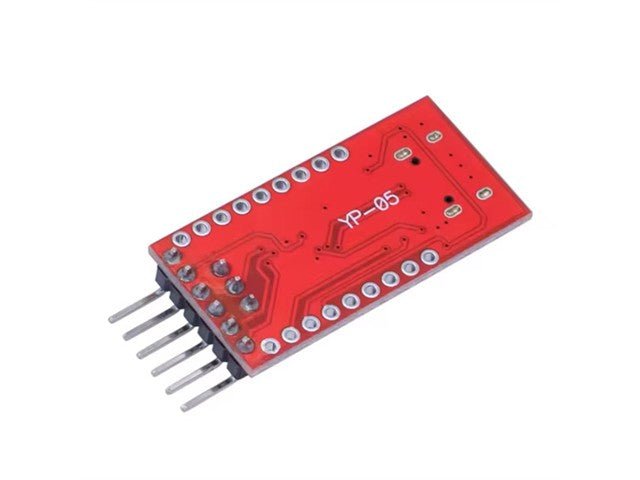

FTDI USB TO TTL Serial Converter Adapter Module
Features
The FT232R is a USB to serial UART interface
A low-cost way to add USB capability to other microcontrollers or for Arduino. Use this to give your own breadboard For downloading sketches or USB capability for bootloading for Arduino.
RXD/TXD transceiver communication indicator
Includes over-current protection, using a 500ma self-restoring fuse
This board includes a DTR pin needed to auto-reset For Arduino when downloading to your device.
Specifications
100% Brand new and high quality. Material: PCB + Electronic Component
Support : 3.3V, 5V
Main Color: Red
Chipset: FT232RL
USB power has over current protection, using 500MA self-restore fuse
RXD/TXD transceiver communication indicator
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch: 2.54mm
Module Size: About 36mm(length)*17.5mm(width)
Additional Information
Device
Adapter Module

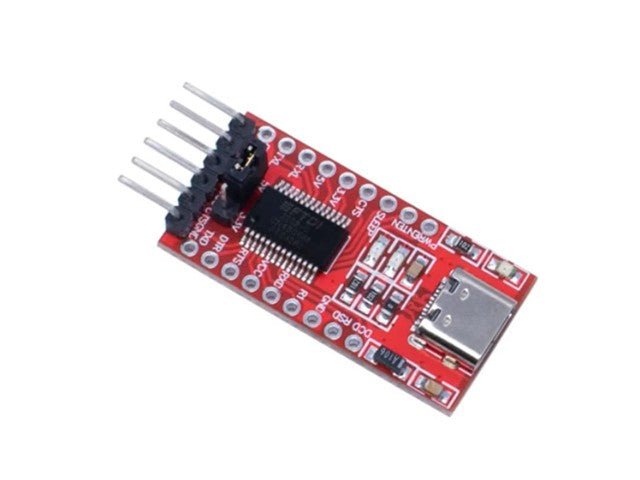

Upgrade your projects with the BDD FT232RL USB-C to Serial Board, a versatile adapter for Arduino and other microcontrollers. This compact module supports both 3.3V and 5V, ensuring seamless connectivity while providing over-current protection for safe operation. Enhance your DIY electronics with reliable USB capabilities for downloading sketches and bootloading.
