Basic
|
|
Layer
|
Layer 2
|
|
Switching Capacity
|
24 Gbps
|
|
Packet Forwarding Rate
|
17.856 Mpps
|
|

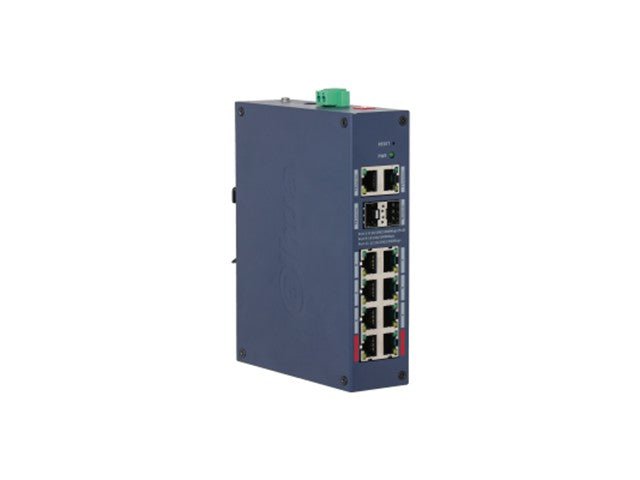

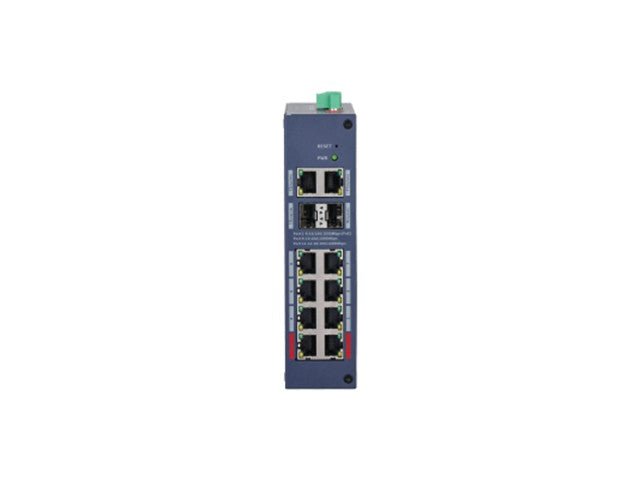

Description of Function Slots
|
Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
Port 11-12: 2 × RJ-45 10/100/1000 Mbps (uplink)
|
|
Operating Temperature
|
–30 °C to +65 °C (–22 °F to +149 °F)
|
|
Operating Humidity
|
10%–90% (RH), non-condensing
|
|
Protection
|
IP30; IK06
|
|
Storage Temperature
|
–40 °C to +85 °C (-40 °F to +185 °F)
|
|
Storage Humidity
|
5%–95% (RH), non-condensing
|
|
Power Supply
|
External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A
|
|
Power Consumption
|
Idling: 2 W
Full load: 117.2 W
|
|
Statics Protection
|
Air discharge: 8 kV
Contact discharge: 6 kV
|
|
Lightning Protection
|
Common mode: 4 kV
Differential mode: 2 kV
|
|
Net Weight
|
0.66 kg (1.46 lb)
|
|
Gross Weight
|
1.6 kg (3.53 lb)
|
|
Product Dimensions
|
171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)
|
|
Packaging Dimensions
|
314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)
|
|
Casing Material
|
Iron
|
|
Installation
|

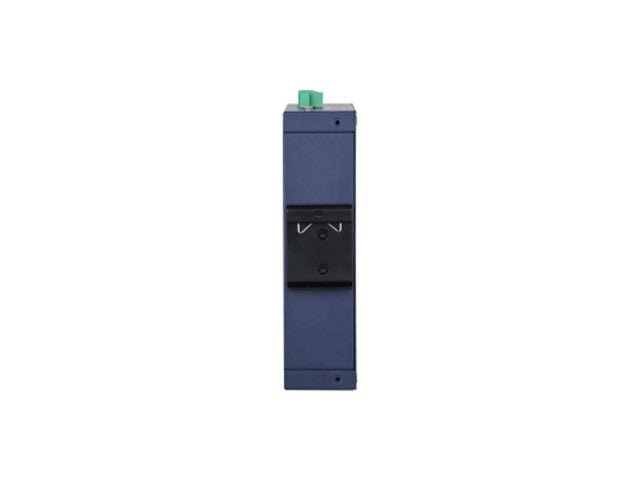

DIN rail mount; desktop mount
|
|
Certifications
|
CE
|
|
PoE
|
|
PoE
|
Yes
|
|
PoE Power
|
Port 3-8≤30 W, port 1–2≤90 W, total≤110 W
|
|
PoE Protocol
|
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
|
|
PoE Power Consumption Management
|
PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
|
|
PoE Pin Assignment
|
1,2,4,5 (V+),3,6,7,8 (V-)
|
|
Long Distance PoE Transmission
|
Yes
|
|
Hardware
|
|

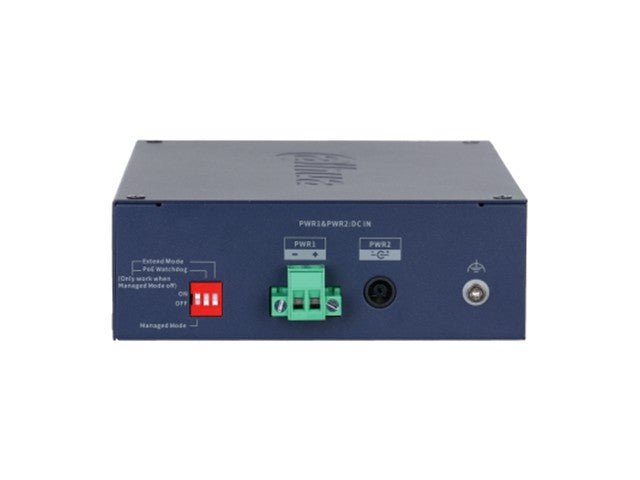

DIP Switch
|
Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
|
|
Reset Button
|
1
|
|
Performance
|
|
MTBF
|
810,020 hours
|
|
Packet Buffer Size
|
8.4 Mbit
|
|
Jumbo Frame
|
12288 Byte
|
|
MAC Table Size
|
8K
|
|
Communication Standard
|
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
|
|
VLAN Number
|
32
|
|
Dynamic ARP
|
10
|
|
Feature
|
|
Ethernet Loop Protection
|
STP; RSTP
|
|
VLAN Function
|
Port-based VLAN
|
|
Link Aggregation
|
Static Aggregation
|
|
Port Feature
|
IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+PORT Binding
Port Self-loop Detection
Ports Self-loop Detection
|
|
Mirror
|
Local Port Mirroring
|
|
Reliability
|
LLDP
|
|
DHCP Function
|
DHCP Client
|
|
Security
|
Port Isolation
IP/Port/MAC Binding
|
|
Equipment Management
|
Web Management
Cloud Management
Logs
System Logs
Fault Alarm
|
|
General
|
|
Packing List
|
1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
|
