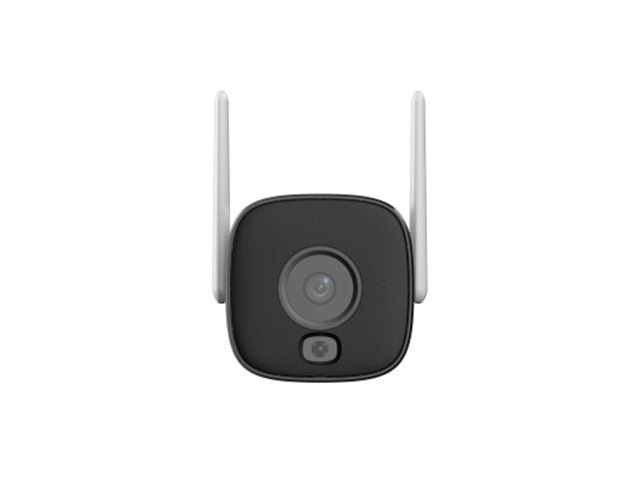

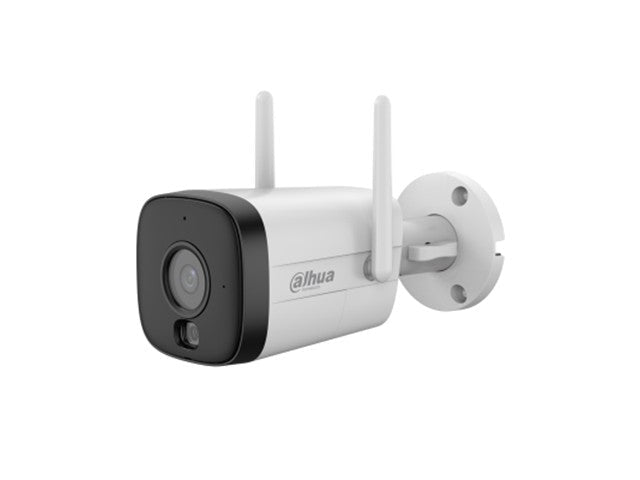

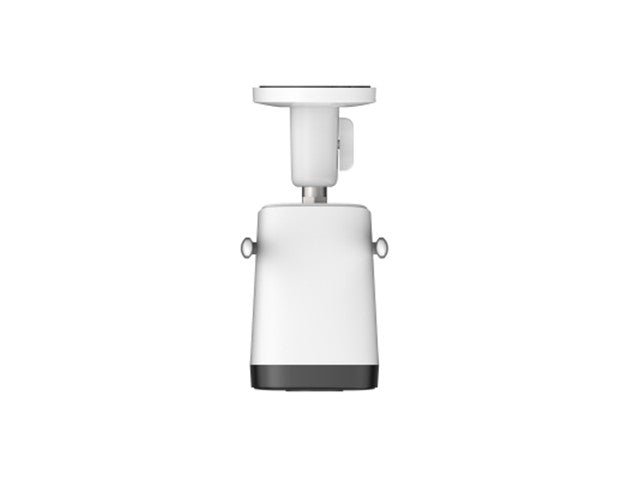

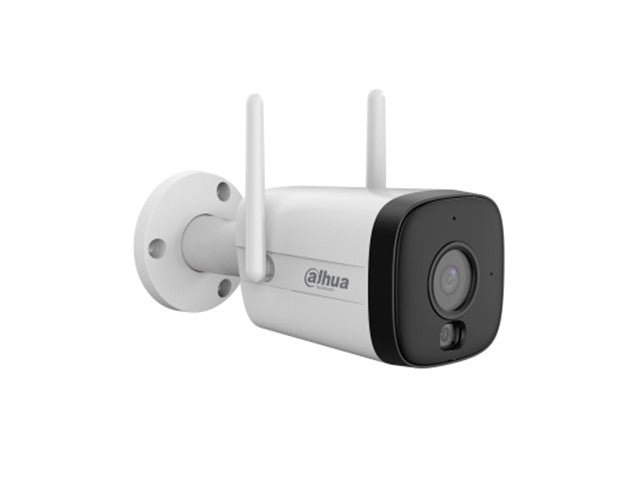

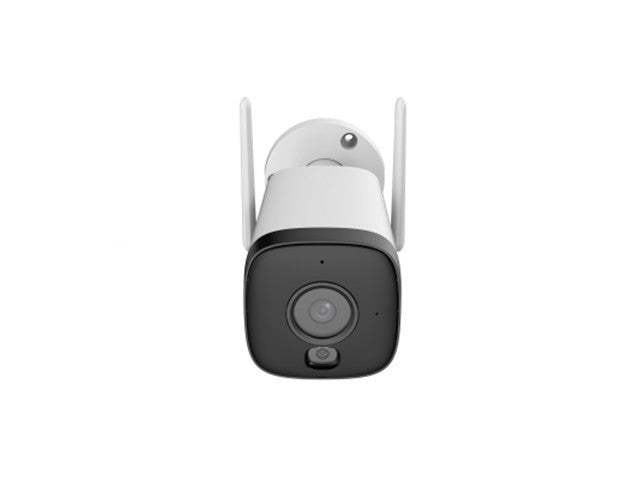

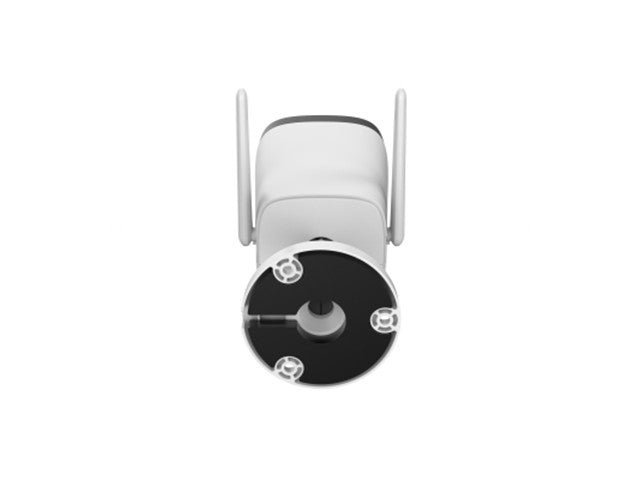

Dahua WiFi Bullet Camera 5MP 2.8mm Lens, 30m IR, 1/2.7" CMOS, H.264/H2.65 , Built-in Microphone , DWDR , Bluetooth Pairing , ONVIF, Smart Dual Light, AI Vehicle & Human Detection, Android, iOS, Micro SD Card Slot (Max 256GB), RJ45, IP67, 12VDC
5MP Fixed-focal WiFi Bullet Network Camera
Overview
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.
Specifications
|
Camera
|
|
Image Sensor
|
1/2.7" CMOS
|
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
|
Min. Illumination
|
0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
|
|
Illumination Distance
|
Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
|
|
Illuminator Number
|
1 (Multi-core (IR + warm) light)
|
|
Angle Adjustment
|
Tilt: 0°–90°
Rotation: 0°–360°
|
|
Lens Type
|
Fixed-focal
|
|
Focal Length
|
2.8 mm
|
|
Max. Aperture
|
F1.6
|
|
Field of View
|
2.8 mm: H: 104°; V: 56°; D: 124°
|
|
Intelligence
|
|
Human Detection
|
Yes
|
|
Vehicle Detection
|
Yes
|
|
Audio and Video
|
|
Video Compression
|
H.264B; H.264; H.264H; H.265;
|
|
Video Frame Rate
|
Main stream: 2880 × 1620@(1–25/30 fps)
sub stream: 640 × 360@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
|
Video Bit Rate
|
H.264: 32 kbps–6144 kbps
H.265: 32 kbps–6144 kbps
|
|
Day/Night
|
Auto(ICR)/Color/B/W
|
|
WDR
|
DWDR
|
|
Motion Detection
|
OFF/ON (4 areas, rectangular)
|
|
Image Rotation
|
0°/180°
|
|
Built-in MIC
|
Yes, built-in Mic
|
|
Audio Compression
|
G.711a; G.711Mu; PCM
|
|
Network
|
|
Network Port
|
RJ-45 (10/100 Base-T)
|
|
Wi-Fi
|
IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm
|
|
Wi-Fi Pairing
|
Bluetooth pairing
|
|
Interoperability
|
ONVIF (Profile S & Profile G & Profile T); CGI
|
|
Storage
|
Micro SD card (support max. 256 GB)
|
|
Management Software
|
Smart PSS Lite; DSS; DMSS
|
|
Mobile Client
|
Android;iOS
|
|
Function
|
|
Abnormal Sound Alarm
|
Yes
|
|
General
|
|
Certifications
|
CE
|
|
Power Supply
|
12 VDC (±30%)
|
|
Power Consumption
|
Basic: 2.4 W (12 VDC);
Max.: 4.3 W (12 VDC)
|
|
Operating Temperature
|
–30 °C to +50 °C (–22 °F to +122 °F)
|
|
Operating Humidity
|
≤95% (RH), non-condensing
|
|
Protection
|
IP67
|
|
Camera Button
|
Reset button
|
|
Casing Material
|
Metal + plastic
|
|
Product Dimensions
|
172.4 mm × 83.3 mm × 75.0 mm (6.79" × 3.28" × 2.95") (L × W × H)
|
|
Net Weight
|
0.3 kg (0.66 lb)
|
Downloads
Additional Information
| Device |
Camera |
| Type |
5MP | Fixed-focal | WiFi | Bullet | Network |
