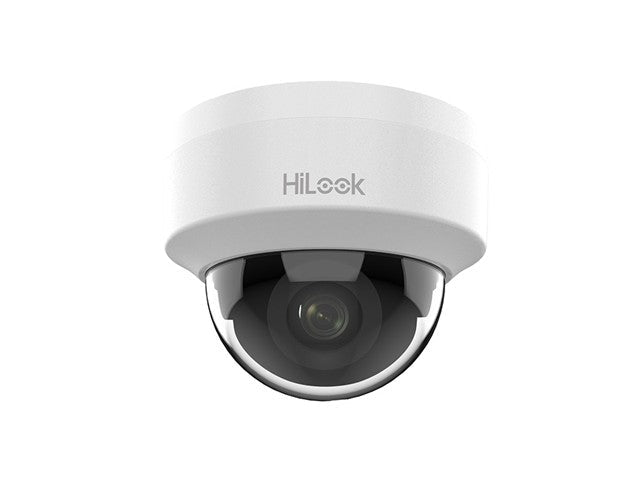

HiLook Dome Network Camera 2MP 2.8mm Lens, Up to 20m IR, 1/2.9" CMOS, H.265+, BLC/ HLC/3D DNR, WDR, 32Kbps~8Mbps, CBR/VBR, 1xRJ45 10M/100M, 12VDC0.4A, Max:4.8W, PoE: IEEE 802.3af, iVMS-4200, TCP/IP
2MP Dome Network Camera
Feature(s)
- High quality imaging with 2 MP resolution
- Easy installation with Power over Ethernet (PoE) technology
Specifications
Camera
- Image Sensor : 1/2.9" Progressive Scan CMOS
- Max. Resolution : 1920 × 1080
- Min. Illumination : Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : IR cut filter
- Angle Adjustment : Pan: 0° to 355°,tilt: 0° to 75°
Lens
- Lens Type : Fixed focal lens, 2.8
- Focal Length & FOV : 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
- Lens Mount : M12
- Iris Type : Fixed
- ApertureF2.2
- Depth of Field : 2.8 mm: 0.8 m to ∞
DORI
- DORI : 2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m
Illuminator
- Supplement Light Type : IR
- Supplement Light Range : Up to 20 m
- Smart Supplement Light : Yes
- IR Wavelength : 850 nm
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264,
- Sub-stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- API : ISAPI,SDK
- Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, UDP, QoS
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- ClientiVMS-4200
- Web Browser
- Plug-in required live view: IE 10, IE 11,
- Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wide Dynamic Range (WDR) : Digital WDR
- SNR : ≥ 52 dB
- Day/Night Switch : Day,Night,Auto,Schedule
- Image Enhancement : BLC,HLC,3D DNR
- Image Settings : Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event : Motion detection,exception
- Linkage : Notify surveillance center
General
- Power
- 12 VDC ± 25%, 0.4 A, max. 4.8 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
- PoE: IEEE 802.3af, Class 3, max. 6.5 W
- Material : Plastic
- Dimension : Ø110.8 mm × 85.2 mm (Ø4.36" × 3.35")
- Package Dimension : 163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
- Approx. 240 g (0.5 lb.)
- With Package Weight : Approx. 380 g (0.8 lb.)
- Storage Conditions : -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions : -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Language : English, Ukrainian
- General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
