PDX KIT PA9701

PDX KIT PA9701

SKU: PDX KIT PA9701

BRAND: Paradox


In Stock
R 6,395.00 (inc VAT)
R 5,560.87 (ex VAT)

Collections: New Arrivals, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: Alarm Kits Wireless, New

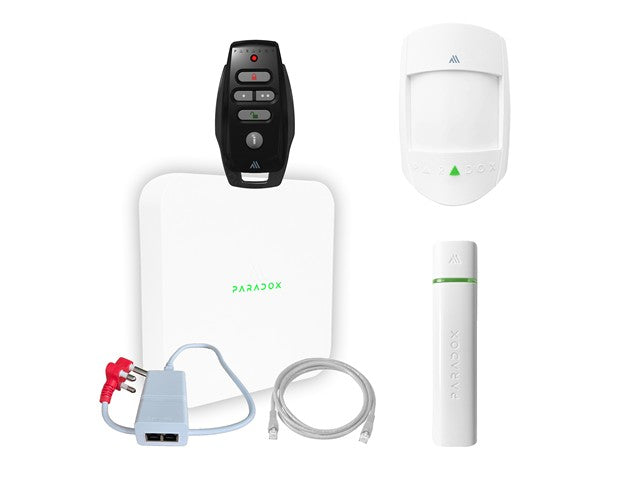

PARADOX M25 WiFi Kit (Includes:1xM25 Console WiFi 868MHz (PA6819) - 1xPoE Adaptor 52V30W+ Power Cord (PA6003K) - 1x2M CAT5E Patch Lead (PA6005) - 1xPMD3M Analog Single-Optic PIR (PA6702) - 1xDCT2M Door/Window Magnetic Contact (PA6708) - 1xREM25M Remote (P

M25 WiFi Kit

Features

  • Hybrid wireless console
  • Security, Video Verification, Access Control, programmable outputs
  • 3 communication channels - Ethernet, Wi-Fi, LTE
  • PoE, 10W power consumption
  • 10 partitions, 128 users, 100 zones, 128 remotes
  • GFSK wireless, 914 MHz or 868 MHz, 75 nodes per system
  • Auto-lean wireless and Ethernet devices
  • Temperature monitoring and control
  • Safe direct reporting to CMS up to 4 channels without cloud dependency
  • User-friendly, simple, mobile application
  • Certifications: CE, EN 50131-3, EN 50131-6, EN 50136-1, EN 50136-2, EN 50131-5-3, FCC 15.247 Grade 2, Class II

Specifications

Power Supply PoE, 10W max
Battery 3.7V Lithium-ion battery, 5000 mAh
Battery Charging Temperature Range 0°C to +40°C (32°F to 104°F)
Battery Backup Time 26H on Ethernet, 24H on Wi-Fi, 20H on LTE
Ethernet / Wi-Fi Built-in Wi-Fi – 2.4 GHz B/G/N
LTE Built-in (LTE Model), main channel or backup
Users 128 total; includes one owner, masters, users, guests, and maintenance
BlueEye Users Access Optional, enabled by owner or master per user
JPEGs for User and Partition Yes, from gallery or camera
Partitions 10
Total Zones 100
Remotes 128 maximum per system, up to four per user
Wireless Devices 75 per system
Adding Devices Via auto-learn feature (wireless and Ethernet), QR scan, or manual serial number input for pre-programming
Wireless Repeaters (via Ethernet) Maximum of 4 per system
Programmable Outputs (PGMs) Up to 48 with wireless expanders; security levels include regular, restricted, or installer-only
PGM Activation Controlled by manual activation, schedule, system events, sunset/sunrise, or temperature reading
PGM Status Verification PGM status with zone verification and timer-based error display per PGM
Ethernet Expansion Devices Up to 45 repeaters, keypads, cameras, and access modules
Video Verification Up to 16 cameras (available starting May 2025)
Access Control Up to 16 doors (available starting July 2025)
Arming Options Stay, Sleep, and Full Arm
Security Events 1000
Access Events 2000
Wireless Frequency Range 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz (frequency may vary by country)
Modulation Type GFSK with frequency and encryption hopping
Wireless Transmission Power 868 MHz band (+14 dBm), 914 MHz band (+22 dBm), coin battery devices limited to +14 dBm
Installation By registered installer with Paradox Service Company ID (PSCI) via BlueEye or Service Company Portal
Service Company Access Permanent access or as granted by System Owner
Service Company Lock Available; enables automatically when the Service Company subscribes to the Swan service
Service Company Portal Available for all registered Service Companies/Installers with Paradox Service Company ID (PSCI)
Temperature Display and Control Site and area temperature display; temperature activation for PGM (cool/heat); custom alerts via push notification and BlueEye message center
Cloud Services Paradox Swan 4G (subscription required)
Reporting Up to four receivers, two channels with backup; up to three transmission channels: Ethernet, Wi-Fi, and LTE
Programming Via BlueEye application or PC software
Operating Temperature -25°C to +55°C (-13°F to 131°F)
Colors White
Dimensions (W × H × D) 12.4 × 12.4 × 3.55 cm (4.89 × 4.89 × 1.4 in.)
Weight 0.26 kg

Downloads

Additional Information

Device WiFi Kit
Type M25
