PDX PMD3M

Name: PDX PMD3M - Communica [Part No: PDX PMD3M]
Brand: Paradox
SKU: PDX PMD3M
Price: 1030.44 ZAR
Availability: InStock

SKU: PDX PMD3M

BRAND: Paradox

In Stock
R 1,185.01_{(inc VAT)}
R 1,030.44_{(ex VAT)}

Collections: New Arrivals, Security, Access Control & Surveillance

Type: Alarms & Accessories

Category: New, PIR

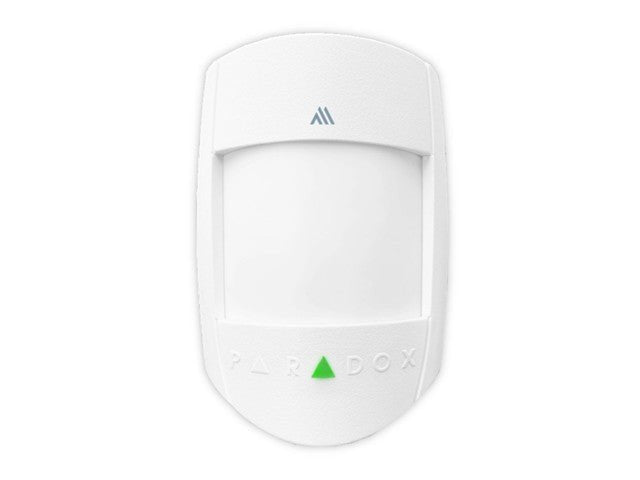

PARADOX PMD3M Indoor Single-Optic Wireless PIR Motion Detector 868MHz, Coverage:110°~12m, Transmission Time:less Than 20MS, Auto Learn, Wireless Type:GFSK Two-Way with FREQ & Encryption Hopping, Includes 2XAA Lithium Batteries, (PA6702)

Indoor Single-Optic Wireless PIR Motion Detector

Features

Indoor single-optic wireless PIR motion detector
Sensitivity level and detection energy control
Up to 5 years of battery life
Temperature sensor
Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247

Specifications

Wireless type : GFSK two-way with frequency and encryption hopping
Sensor Type : Dual rectangular element
Coverage : 110° - 12m (39 ft) x 12m (39 ft)
Detection Speed : 0.2m/s to 3.5m/s (0.6 ft/s to 11.5 ft/s)
RF Frequency
- 868 (865.05 - 867.95) MHz
- or 914 (902.25 - 927.55) MHz
- Other countries might change
RF power : 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.
Transmission Time : Less than 20ms
Supervision Time : 20 minutes, 10 minutes (Default), and 3 minutes
Status Indicators : Battery, temperature, TX/RX values
Battery Lithium : 2 x 1.5 VDC AA (recommended), up to 5 years of battery life
Firmware Upgrade : Remotely over the air, via BlueEye
Auto Learn : Yes
Installation Environment : Indoor
Operating Temperature (with lithium batteries) : -20°C to +40°C (-4°F to 104°F)
Colors : White
Dimensions : 6.6W x 9.9H x 6.1D cm (2.6W x 3.9H x 2.4D in.)
Weight : 0.13 Kg

Downloads

Datasheet - PDX PMD3M

Additional Information

Device	Motion Detector
Type	Indoor \| Single-Optic \| Wireless \| PIR
