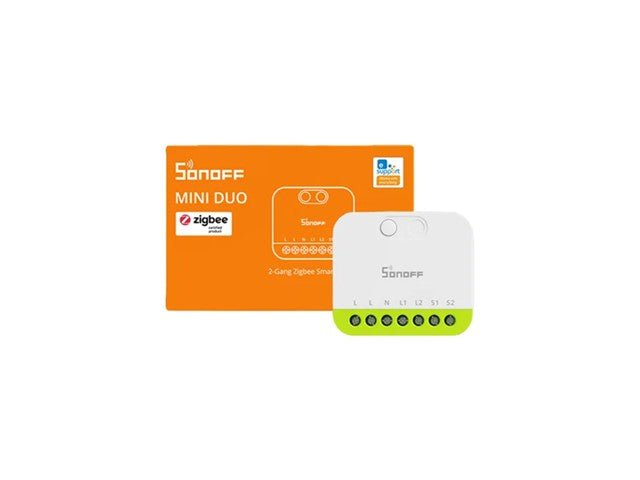

The Sonoff Mini Duo (Zigbee) has Dual Control for efficiency. The “Duo” capability allows you to control two distinct electrical circuits (2 Live Outputs) from a single unit. Despite this dual functionality, it retains the ultra-compact “Extreme” form factor, making it small.

Retain Physical Control Don’t lose your traditional wall switches. The S1/S2 ports allow you to wire your existing 2-lever rocker switches directly to the unit, giving you the best of both worlds: smart app control and familiar physical switching.

• Zigbee 3.0 Protocol: Fast, reliable, and low-latency local control.
• Mesh Networking: Strengthens your Zigbee network by acting as a signal repeater (router).
• 2-Channel Output: Control two separate electrical circuits independently.
• Hub Compatible: Works with Sonoff ZBBridge, SmartThings, and Amazon Echo (Zigbee).
• Extreme Size: Ultra-small body fits inside standard 2×4 or 4×4 wall boxes.

• Product Type: Zigbee Smart Switch
• Model: Sonoff Zigbee Mini Duo (Extreme Series)
• Protocol: Zigbee 3.0 (IEEE 802.15.4)
• Input Voltage: 100-240V AC 50/60Hz
• Output: 2-Channel / 2-Gang
• Max Load: 16A Total (10A Max per Gang) – Subject to final rating on unit
• Required Hardware: Zigbee Hub / Bridge (e.g., Sonoff ZBBridge Pro, iHost, NSPanel Pro)
• External Switch Support: S1/S2 Ports (Rocker/Pulse switch compatible)
• Range: Up to 30m (Indoor) / Extends via Mesh
• Casing Material: PC V0 (Fire Retardant)

Product Size and Weight

• Dimensions: 39.5 x 33 x 16.8mm
• Weight: ~32g
