WVS CP2102 TYPE-C USB TO UART BD

Name: WVS CP2102 TYPE-C USB TO UART BD - Communica [Part No: WVS CP2102 TYPE-C USB TO UART BD]
Brand: Waveshare
SKU: WVS CP2102 TYPE-C USB TO UART BD
Price: 95.65 ZAR
Availability: InStock

SKU: WVS CP2102 TYPE-C USB TO UART BD

BRAND: Waveshare

In Stock
R 110.00_{(inc VAT)}
R 95.65_{(ex VAT)}

Collections: IoT, Internet of things, New Arrivals

Type: Communications

Category: Iot, New, USB To TTL (UART) Communication Module

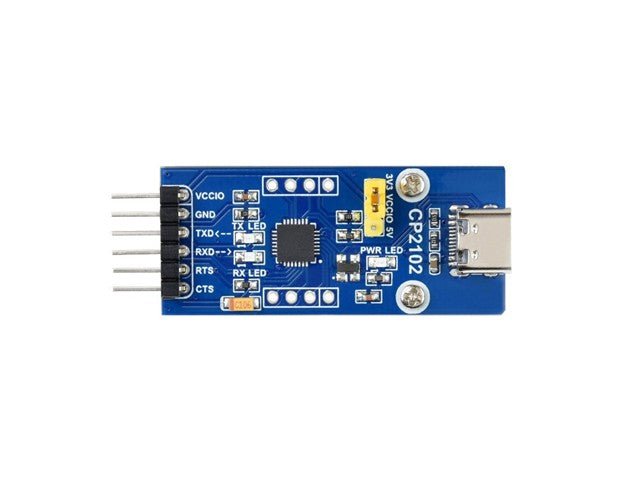

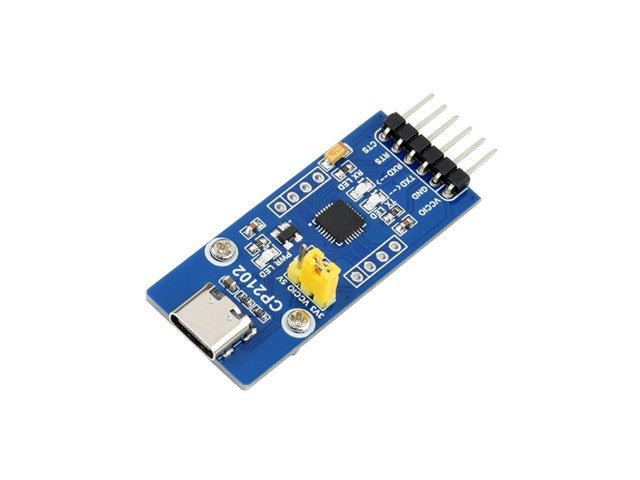

CP2102 USB UART Board (Type C), USB To TTL (UART) Communication Module, USB-C Connector

USB To TTL (UART) Communication Module,

Features

Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11...
Voltage output support: 5V or 3.3V
Integrated USB protection device: SP0503
3x LED indicators: TXD LED, RXD LED, POWER LED
Pins accessible on pinheaders: TXD, RXD, RTS, CTS

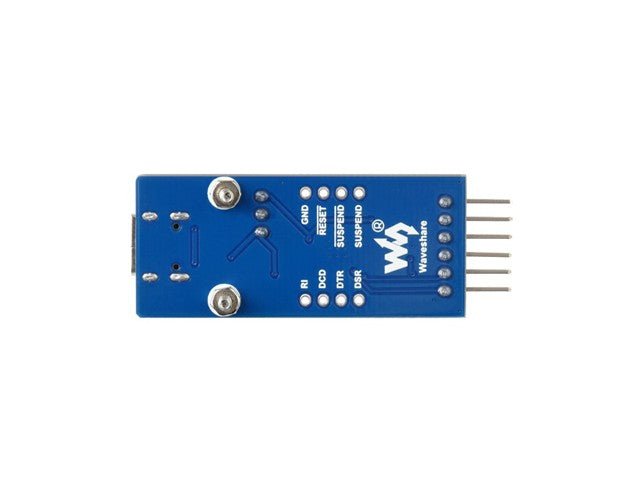

Other pins are accessible on drilled holes, easily connected to user application system (the pin pitch is compatible with universal prototype board)
WIKI

Specifications

Single-Chip USB to UART Data Transfer
- No external resistors required, no external crystal required
- On-chip power-on reset circuit and voltage regulator
- Integrated 1024-Byte EEPROM
USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend state, supported via SUSPEND pins
UART
- All handshaking and modem interface signals
- Data formats:
  - Data bits: 5, 6, 7, 8
  - Stop bits: 1, 1.5, 2
  - Parity: odd, even, no parity
- Baudrates: 300bps to 1Mbps
- 576 byte receiving buffer; 640 byte transmitting buffer
- Hardware or X-On/X-Off handshaking support
- Event character support
Virtual COM Port Device Drivers
- Windows 8/7/Vista/Server 2003/XP/2000
- MAC OS-X/OS-9
- Linux 2.40 or higher
USBXpress Direct Driver Support
- Windows 7/Vista/Server 2003/XP/2000
- Windows CE
Temperature Range
- –40 to +85 °C

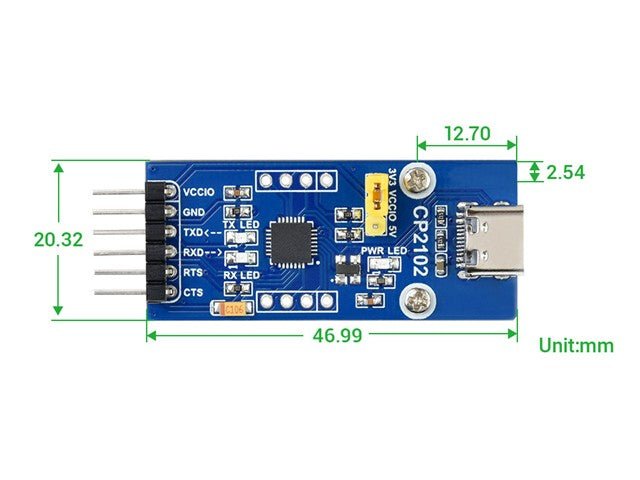

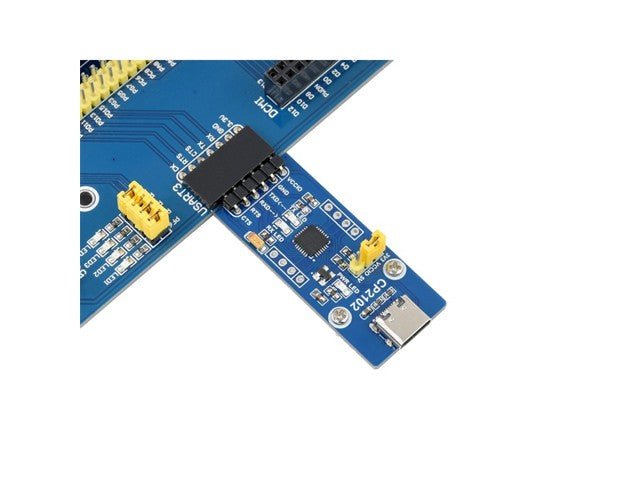

VCCIO: 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
GND: connects to GND
TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)

Downloads

Datasheet - WVS CP2102 TYPE-C USB TO UART BD

Additional Information

Device	Communication Module
Type	USB To TTL (UART)
