5MT Reel. WS2811 12V 14,4W. IP20(Non Waterproof). 5050 60LED RGB LED Strip White. Control OF 3 LEDs at a Time-Not Individual

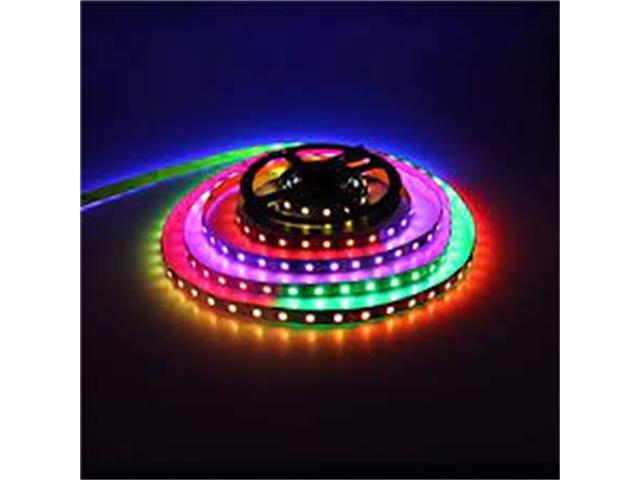

12V WS2811 LED Strip
Overview
The Addressable 12V WS2811 striplight is controlled in groups of 3 LEDS - not individual LEDs like the WS2812 strip.
Specifications
- 5MT/REEL
- SMD 5050X60 Led
- WS2811 IC
- 60 LED/m
- Power : 14.4W/m
- Voltage : 12Vdc
- Non-Waterproof
- Emitting Color : RGB, Changeable Colour, Full Colour
- Viewing angle : 120°
- Temperature : -20 to 50°C
- Size ( L*W*H ) 5000 x 10x 2.5 mm

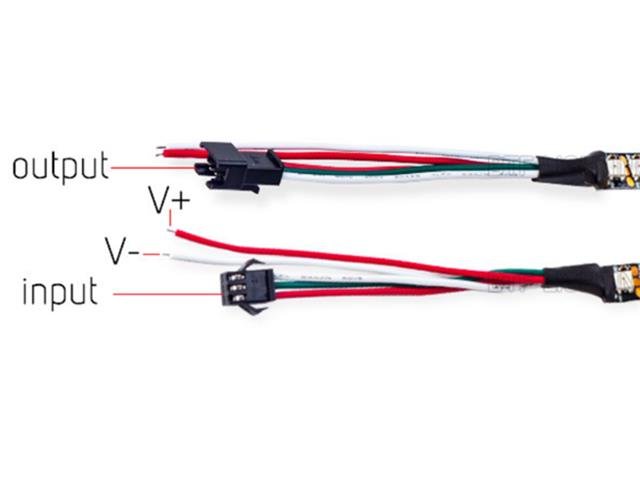

Wiring
- Red → Positive
- White → Negative
- Green → Data
Additional Information
Device |
LED Strip |
Type |
12V | WS2811 |
