LED DMX512 3CH RGB CONTROLLER

Name: LED DMX512 3CH RGB CONTROLLER - Communica [Part No: LED DMX512 3CH RGB CONTROLLER]
Brand: Communica
SKU: LED DMX512 3CH RGB CONTROLLER
Price: 350 ZAR
Availability: InStock

SKU: LED DMX512 3CH RGB CONTROLLER

BRAND: Communica

R 402.50_{(inc VAT)}
R 350.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Opto-electronics

Type: LED Controllers, Dimmers, Drivers, ect

Category: LED Decoder

DMX512 RGB Decoder : Input Voltage 12 - 24vdc. 3 Channels - 8a/channel (15a Maximum Total For The Decoder)

DMX512 RGB Decoder 3ch

Overview

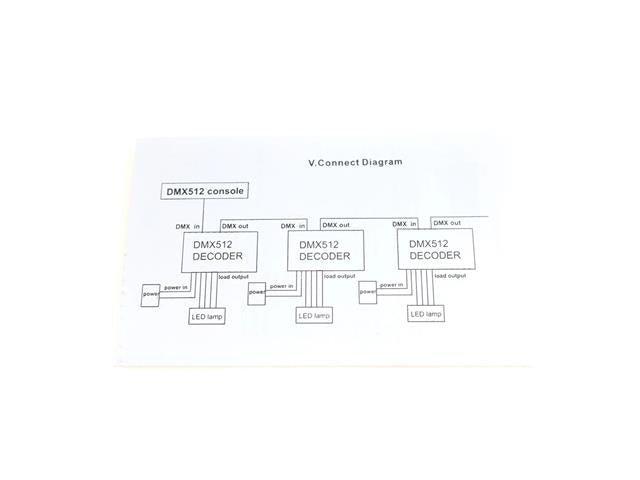

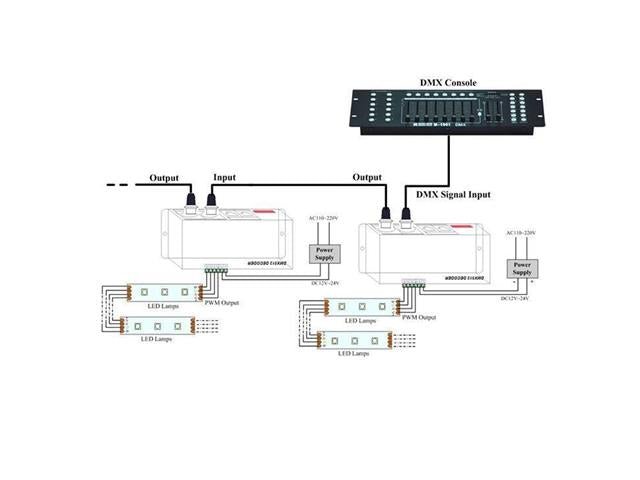

This DMX decoder adopts advanced computer control chip,can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED.It can be controlled by the DMX Console, and can connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode.Besides, this DMX decoder can be used as the synchronous controller to controlled the LED alone,it can realize the synchronous effects.This decoder adopt the digital tube to show the address code,and with 3 buttons to setting,make it more easy to used.

Feature

Working Temperature : -20~+60°C
Supply voltage : DC12~24V
Output : 3 channels
External Dimension : L177xW42xH33mm
Packing Size : L180×W95xH60(mm)
Net Weight : 201g
Gross Weight : 245g
Static Power Consumption : <1W
Output Current : each channel 4A
Output Power : 12V:<192W, 24V:<384W

Additional Information

Device	RGB Decoder
Type	3channel \| DMX512
Highlights	Input Voltage 12~24VDC \| Output 192W/12V, 384W/24V

Transform your lighting setup with the LED DMX512 3CH RGB Controller. This powerful decoder supports 12-24V DC and controls up to 384W, offering seamless integration with DMX consoles for stunning RGB effects. Enjoy easy setup and synchronization for vibrant displays that captivate and enhance any atmosphere.
