DMX512 RGB Decoder : Input Voltage 12 - 24VDC. 4 Channels - 8A/Channel (16A Maximum Total For The Decoder)
DMX512 RGB Decoder
Overview

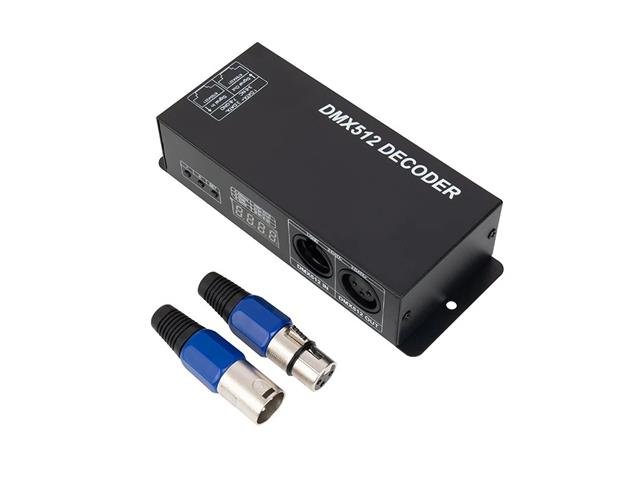

The 4-channel LED DMX Decoder translates DMX512 signals to single-color, tunable white, RGB, or RGBW LED strip lights and fixtures. It can control up to 4 separate constant voltage single-color LED products or a single RGBW light bar or flexible strip light. Run the decoder under DMX512 digital control signals using the RJ45 or XLR3 input/output interfaces. For manual use, set the starting address of the driver using the DIP switches. Connect up to 8 amps per channel- 16 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.
Feature
1-4 channel operation
RJ45 and XLR3 inputs/outputs
Max 8A current per channel (16A total for the decoder)
Specifications
RJ45 Input/Output
XLR3 Input/Output
12 VDC: 96W per channel, 180W total
24 VDC: 96W per channel, 384W total
Additional Information
Device
Decoder
Type
DMX512 | RGB
Elevate your lighting setup with the LED DMX512 4CH RGBW Controller, designed to seamlessly decode DMX512 signals for vibrant RGB and tunable white LED strips. With 4 channels and a total capacity of 16A, this controller ensures powerful performance for captivating displays. Enjoy easy connectivity through RJ45 or XLR3 interfaces, making it perfect for both professional and DIY projects. Transform your space with dynamic lighting control today!
