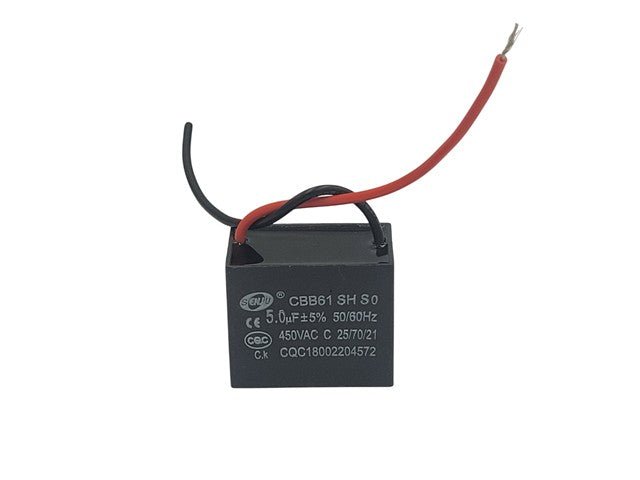

CBB61 5.0UF Starting Capacitance AC Fan Capacitor 450V CBB Motor Run Capacitor
5.0UF Starting Capacitance AC Fan Capacitor
Feature(s)
Construction & Type
Capacitor Type: Metallized polypropylene film (CBB61 series)
Design: Non-polarized (can be connected either way)
Encapsulation: Plastic case (flame-retardant epoxy resin)
Leads: 2-wire
Applications
Ceiling fans
Stand/desk fans
Air conditioners (fan motors)
Pumps & small single-phase AC motors
Function: Provides phase shift to start and run the motor efficiently.
Specifications
Capacitance: 5.0 µF (microfarads)
Tolerance: ±5% (sometimes ±10%)
Rated Voltage: 450VAC
Frequency: 50/60 Hz
Insulation Resistance: ≥3000 MΩ (typical)
Dissipation Factor: ≤0.002 (low loss)
Environmental Ratings
Operating Temperature: -25°C to +70°C (typical, may vary by brand)
Climate Category: 25/70/21 (common marking)
Physical Characteristics
Shape: Rectangular / box type
Typical Size: ~40 × 20 × 30 mm (varies slightly by manufacturer)
Weight: ~0.1–0.2 kg (approx.)
Additional Information
Device
Capacitor
Type
5.0UF | AC Fan | 450V | CBB | Motor Run
Upgrade your AC fan's performance with the CMU 5.0UF 450VAC FAN CAP. This reliable motor run capacitor enhances efficiency, ensuring smooth operation and longer lifespan for your cooling system. Perfect for residential and commercial use, it delivers dependable starting capacitance to keep your fans running at their best.
