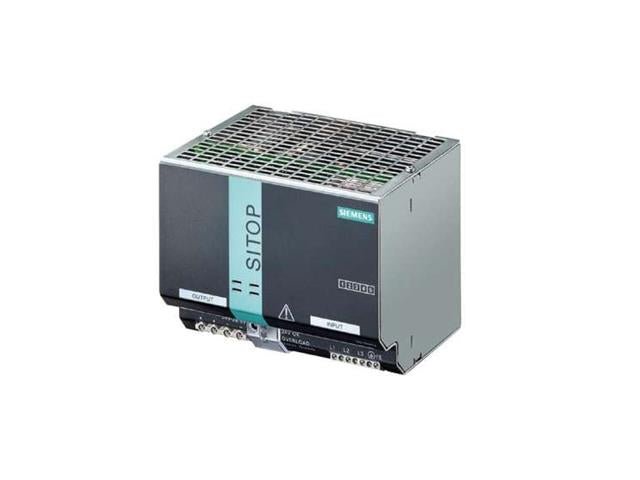

SITOP Modular 20 A Stabilized Power Supply Input: 120/230 V AC, Output: 24 V DC/20 A (6EP1336-3BA00 - New Version)
SITOP Modular 20 A Stabilized Power Supply
Specifications
Manufacturer: Siemens
Product family: SITOP PSU8200 / SITOP Modular
Type: Industrial switching power supply (DIN rail mounted)
Input voltage:
120–230 V AC
110–220 V DC
Wide range: approx. 85–275 V AC / 88–350 V DC
Input frequency:
47–63 Hz
Output voltage:
24 V DC
Adjustable: 24–28 V DC
Output current:
20 A
Output power:
480 W
Efficiency:
Up to ~93–94%
Mounting type:
DIN rail (EN 60715)
Dimensions (W × H × D):
90 × 125 × 125 mm
Weight:
~1.2–1.35 kg
Protection features:
Short-circuit protection (SCP)
Overload protection (OPP)
Overvoltage protection (OVP)
Overtemperature protection (OTP)
Output characteristics:
Low ripple (≈ ≤100 mV peak-to-peak)
Current limiting ~20–21.5 A range
Operating temperature:
-25 °C to +70 °C
Cooling method:
Natural convection (fanless)
Indicators:
LED “24 V OK” status signal
Relay contact output for status monitoring
Parallel operation:
Supported (up to 2 units)
Certifications:
CE, UL, CSA, UKCA, EAC, RCM
Application areas:
PLC systems
Industrial automation
Control panels
Machine and plant power distribution
