BATT 12V3,4 EPS
SKU: BATT 12V3,4 EPS
BRAND: EPS
R 247.25 (inc VAT) R 215.00 (ex VAT)
🚚
Delivery time: 2-5 working days for South Africa
✓
In stock - Ready for immediate dispatch
Free shipping for orders over ZAR 1,000.00

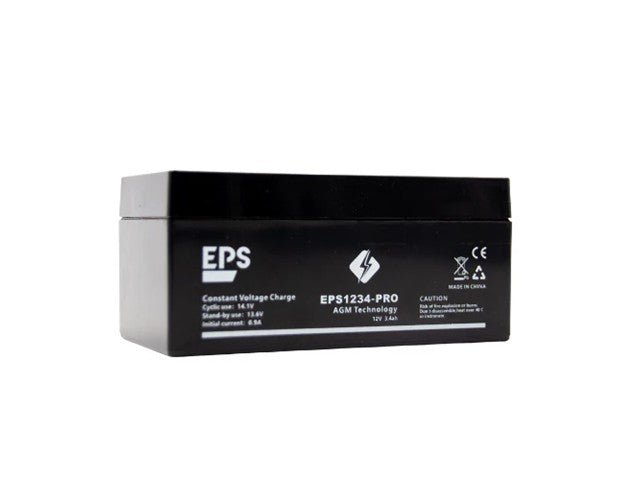

Rechargeable Battery 12V3.4AH { L=134 W=67 H=62mm } F1 Terminal 4.8mm 1kg
12V3.4AH Rechargeable Battery
Features
Ensure all batteries operating in a series-based connection are not overcharged.
Ensure all batteries operating in a series-based connection are not excessively discharged.
Always charge batteries using the correct voltage.
Recharge capacity should be 1.1–1.15 times the discharge capacity.
Temperature effect on cycle charge voltage: −5 mV per degree per cell.
Batteries must always be kept upright and never placed on their side.
Factors Affecting Battery Life:
Depth of discharge
Temperature
Recharge rate
Specifications
Dimensions (mm) L134 × W67 × H62 mm
Approx. Weight 1 kg (2.20 lbs)
Voltage & Designations
Nominal Voltage
12 V (6 cells per unit)
Designed Floating Life (20℃)
5 years
Nominal Capacity (20℃)
3.4 Ah @ 20HR rate (to 1.75 Vpc)
Terminal Type
Faston Tab F1
Internal Resistance
Approx. 0.042 mΩ (fully charged @ 20℃)
Max. Charge Current
1.02 A
Max. Discharge Current (5s)
45 A
Short Circuit Current
260 A
Self Discharge
Approx. 3% per month @ 20℃
Ambient Temperature
Discharge
−15℃ to 50℃
Charge
−20℃ to 50℃
Storage
−20℃ to 50℃
Charging Voltage
Float Charge Voltage (20–25℃)
13.6 – 13.8 V (−3 mV/cell/℃)
Equalize & Cycle Charge Voltage (20–25℃)
14.4 – 14.8 V (−5 mV/cell/℃)
Construction
Container Material
ABS (UL94-V0 optional)
Downloads
Additional Information
Device
Battery
Type
12V3. | 4AH | Rechargeable
Power your devices with the BATT 12V3.4 EPS rechargeable battery. Compact and efficient, this 12V battery offers reliable performance with a 5-year lifespan, perfect for various applications. Lightweight and designed for optimal charging, ensure your equipment runs smoothly and efficiently with this high-capacity battery.
