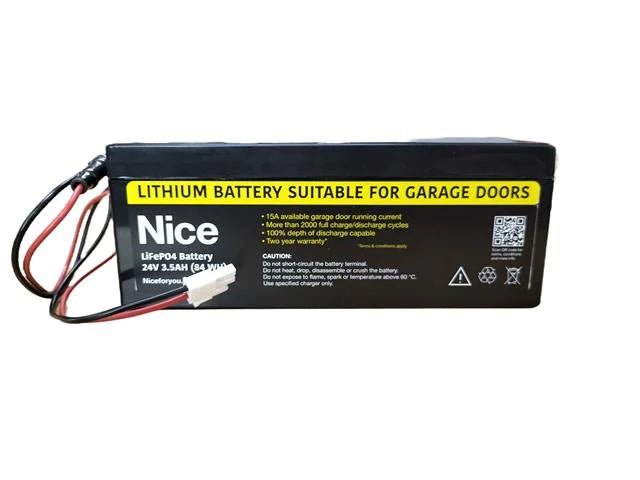

Nice Lithium Ion Rechargeable Battery (LiFePO4) 24V 3.5AH 84Wh, Cycle Life:<2000 at 80%DOD, Max Discharge Current:10A, Max Charge Current:3.5A, Charge Cut-Off Voltage 29.6V, Discharge Cut-Off Voltage:16V, 185x73x69mm, IP56, 900g
Lithium Ion Rechargeable Battery
Specifications
Electrical Characteristics
- Nominal Voltage : 25.6V
- Nominal Capacity : 3.5Ah
- Energy : 89.6Wh
- Internal Resistance : ≤180mΩ
- Cycle Life : >2000 cycles at 0.2C 80% DOD
- Months Self Discharge : <3%
Charge
- Charge Voltage : 28.8+/-0.2V
- Charge Mode : CC at 0.2C to 28.8V, CV28.8V stop current = 0.02C
- Charge Current : 1.75A
- Max. Charge Current : 3.5A
- Charge cut-off voltage : 29.6V+/-0.2V
Discharge
- Max. Continuous Current : 10A
- Max. Pulse Current : 15A
- Discharge cut-off Voltage : 16V
Environment
- Charge Temperature : 0°C to 45°C at 60±25% Relative Humidity
- Discharge Temperature : - 20°C to 60°C at 60±25% Relative Humidity
- Storage Temperature : 0°C to 40°C 60±25% Relative Humidity
- Ingress Protection : IP56
Mechanical
- Cell Material : LiFePO4
- Plastic Case Material : ABS
- Dimensions (mm) : 185mm*73mm*69mm
- Weight (Kg) : 0.9Kg
- Terminal : Wire & Connector
BMS
- Protection Function
- Over charge, Over discharge, Over current, Short Circuit,
- Cell Balancing function, Temperature protection
