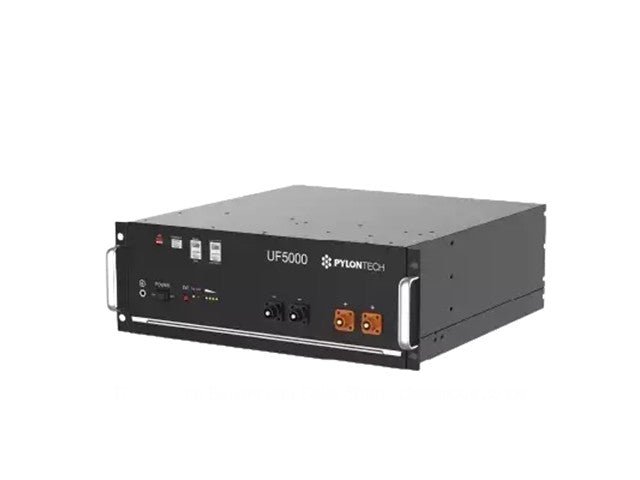

Pylontech Lithium Ion Rechargeable Battery UF5000 5.12kWh, Voltage:51.2V, Charge/Discharge Max:100A, RS485/CAN, 6000 Cycles, BMS, 1C Rated, DOD:95% (4.864kWh Usable), Parallel Up To 20 Units, 442x452x6x161mm, 42kg
Pylontech Lithium Ion Rechargeable Battery
Features
Key benefits
-
5.12 kWh per module, fewer boxes to reach common system sizes.
-
Integrated BMS for pack protection, balancing, and inverter comms.
-
CAN/RS485 communication for smooth setup with popular hybrids.
-
Rack-friendly, front I/O keeps installs neat and serviceable.
-
Designed for frequent cycling, stable LiFePO4 chemistry.
Typical use cases
- Solar self-consumption, store daytime PV and use it at night.
- Time-of-use optimisation, charge off-peak and discharge at peak.
- Backup for essential loads during load shedding.
Installation notes
- Commission modules to a similar state of charge before paralleling.
- Use DC cables and protection rated for the bank’s continuous current and fault levels.
- Provide ventilation space as per the datasheet and avoid heat sources.
- Ensure correct earthing and bonding of racks and enclosures.
- This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Technical notes
- Do not mix battery types in one stack or group, keep UF with UF, UP with UP.
- Where possible keep modules within similar state of charge before paralleling.
- Peak values are time-limited and temperature-dependent, design for continuous current.
- NOTE: The PYLON-UF5000 battery is not compatible with the PYLON-UP5000, PYLON-US3000C, PYLON-US2000C.
Specifications
| Spec |
UF5000, newer model |
| Nominal voltage |
51.2 V |
| Nominal energy |
5.12 kWh |
| Usable energy |
4.864 kWh at 95% DoD |
| Continuous charge or discharge |
100 A |
| Peak current |
105–119 A for 15 min, 120–200 A for 15 s |
| Dimensions and weight |
442 W × 452.6 D × 161 H mm, 42 kg |
| Design life |
15 years |
| Operating temperature, charge |
−10 to 55 °C |
| Operating temperature, discharge |
−10 to 55 °C |
| Storage temperature |
−20 to 60 °C |
| Communications |
RS485, CAN |
| Max per battery group |
20 modules |
Downloads
Additional Information
Upgrade your energy storage with the BATT 51.2V100A LI-ION PYL battery. Delivering 5.12 kWh of reliable power, this lithium-ion battery is perfect for solar self-consumption and backup during outages. Designed for longevity with 6000 cycles and an integrated BMS, it ensures safe and efficient performance. Maximize your energy savings and maintain a tidy installation with its rack-friendly design.
