Battery Active Balancer/Equaliser 24V Lithium - Suitable For All Battery Types 2x12V Batteries, IP67, Low Power Consumption 3mA, Optimization Current-controlled Between 0~5A

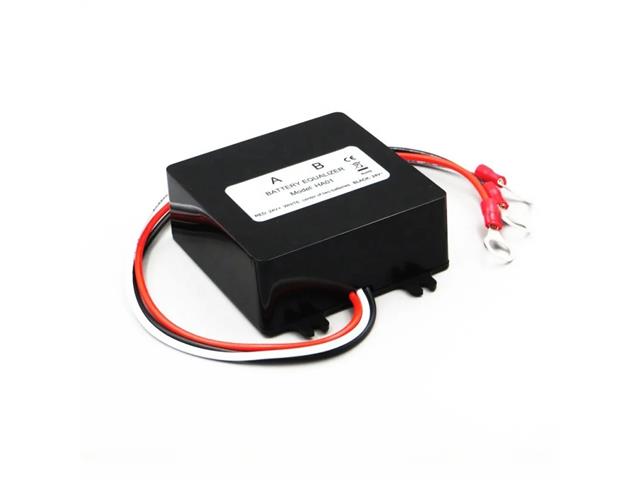

24V Lithium Battery Active Balancer/Equaliser
Features
- Can be connected to 24V battery banks (2x 12V in series)
- Monitors each battery voltage
- On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal
- Battery banks of 2x 12V can be used
- IP67 rated
- No external power supply is required
- Reverse polarity protection
- Optimization current-controlled between 0 to 5 A
- Low power consumption of 3mA
- Keeps batteries in optimal condition
- Up to 5Amp inter battery balancing
- Ensures longer service life of batteries
- Highly recommended for batteries in series
- 24V Active balancer

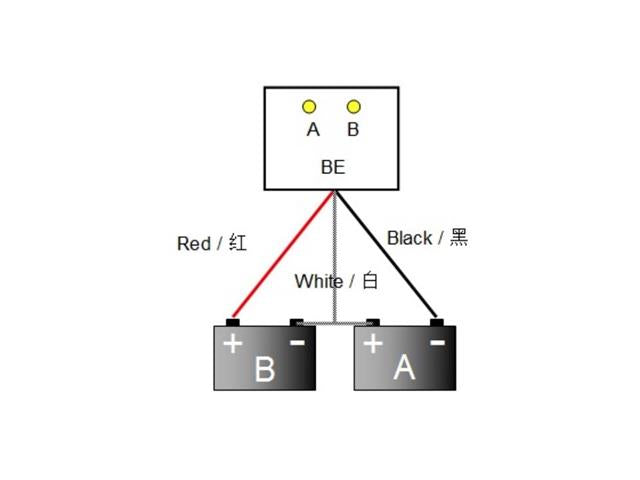

- Easily connect to batteries with included wiring
Specifications
- Can be connected to 24V battery banks (2x 12V in series)
- Monitors each battery voltage
- On deviation of more than 20 mV, the higher voltage battery will be discharged to the lower voltage batteries until all the battery voltages are equal
- Battery banks of 2.4V/3.6V/6V/9V/12V can be used
- IP67 rated
- No external power supply is required
- Reverse polarity protection
- Optimization current-controlled between 0 to 5 A
- Low power consumption of 3mA
HB01/HB11/HB11L
| Voltage Difference (V) |
Balance Current (A) |
| 1.6 |
1.23 |
| 1.4 |
1.1 |
| 1.2 |
0.92 |
| 1.1 |
0.86 |
| 1 |
0.76 |
| 0.5 |
0.4 |
Additional Information
| Device |
Balancer/Equaliser |
| Type |
24V | Lithium | Battery | Active |
