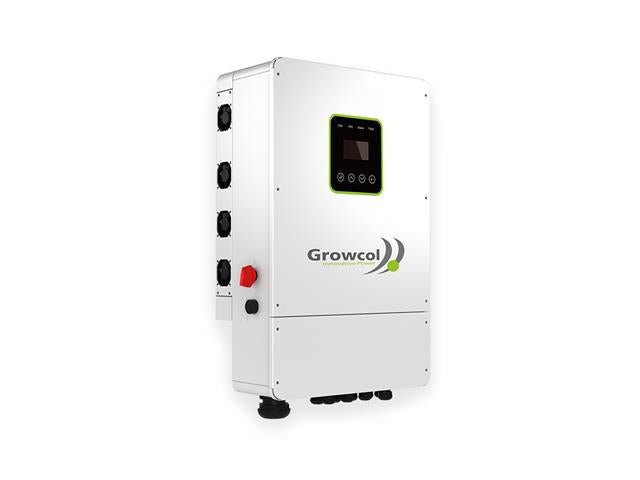

Growcol Hybrid Pure Sine Wave Inverter Max Apparent Power O/P GRID 8.8KVA 48VDC, Max DC I/P PWR:12KW, Max DC I/P Voltage:500V, Max Charge/Discharge Current 190A, 4 x MPPT, RS485/CAN, 430x710x220mm, Self-Adaption to BMS, MAX:8XPARALLEL, IP65, 32kg
Hybrid Pure Sine Wave Inverter
Feature
Grace
- Fashion apperance, light weight, smart operation.
- Natural cooling, low noise.
- IP65 , wall mounted design, saving space.
- Touch screen LCD.
Flexible
- Wide input voltage range.
- Compatible with lead-acid or lithium-ion batteries or other battery.
Reliable
- Compatible anti counter flow function
- Battery reverse connect protection
Advance
- Intelligent energy management system for home.
- Power dispatching and demand side response management.
- Distributed virtual power station management.
- Frequency droop control, Max.8pcs parallel.
- Support storing energy from diesel generator.
Specifications
PV Input Data
- MAX.DC Input Power : 12kW
- NO.MPPT Tracker : 4(independent)
- MPPT Range : 120 - 500V
- MPPT Range : 500V
- MAX.Input Current : 13A/13A/13A/13A
Battery Input Data
- Nominal voltage (Vdc) : 48V
- MAX.Charging/Discharging Current : 190A/190A
- Battery Voltage Range : 40-60V
- Battery Type : Lithium and Lead Acid Battery
- Charging Strategy for Li-Ion Battery : Self-adaption to BMS
AC Output Data(On-Grid)
- MAX. Apparent Power Output to Grid : 8.8KVA
- Output Voltage : 220V, 230 V,240V
- Output Frequency : 50/60Hz
- Max.AC Current Output to Grid : 38.3A
- Max.AC Current From Grid : 50A
- Output Power Factor : 0.8leading...0.8lagging
- OutPut THDI : < 2%
AC Output Data(Back-Up)
- Nominal. Apparent Power Output : 8KVA
- Nominal Output Voltage : 220V, 230 V,240V
- Nominal Output Frequency : 50Hz/60Hz
- Output THDU : < 2%
Efficiency
- Europe Efficiency : >=97.8%
- MAX. Battery to Load Efficiency : >=97.2%
Protection
- Grounding detection : YES
- Arc Fault Protection : YES
- Island Protection : YES
- Battery reverse Polarity : YES
- Insulation Resistor Detection : YES
- Residual Current Monitoring Unit : YES
- Output Over Current Protection : YES
- Back-up Output Short Protection : YES
- Terminal temperature detection : YES
- Output Over Voltage Protection : YES
- Output Under Voltage Protection : YES
General Data
- Output Conduit : 25.4mm
- PV Input Conduit : 25.4mm
- BAT Input Conduit : 34.5mm
- Operating Temperature Range : -25 ~ +60°C
- Operating Altitude : 0~4,000m
- Ingress Protection : IP65
- Weight : 32kg
- Size (W*H*D) : 430mm x 710mm x 220mm
- Cooling : DC Fan Cooling
- Noise emission : <30dB
- Communication With : BMS/Meter/EMS RS485,CAN
- Supported communication interface : RS485, WLAN, 4G (optional)
- Self-consumption at night : < 2.5 W (with battery enabling < 5 W)
- Safety : IEC62109-1,2; IEC62477-1
- EMC : IEC61000-6-1,2,3,4
- Grid connection standards : G99,VDE4105,CEI0-21,NRS
Downloads
Additional Information
| Device |
Inverter |
| Type |
Hybrid | Pure Sine Wave |
