KG20B-T106D - Solar -

KG20B-T106D

SKU: KG20B-T106D

BRAND: Kraus & Naimer


Sold Out

Collections: Loadshedding, Power

Type: Solar

Category: Loadshedding, Single String DC Switch Disconnector, Solar Accessories

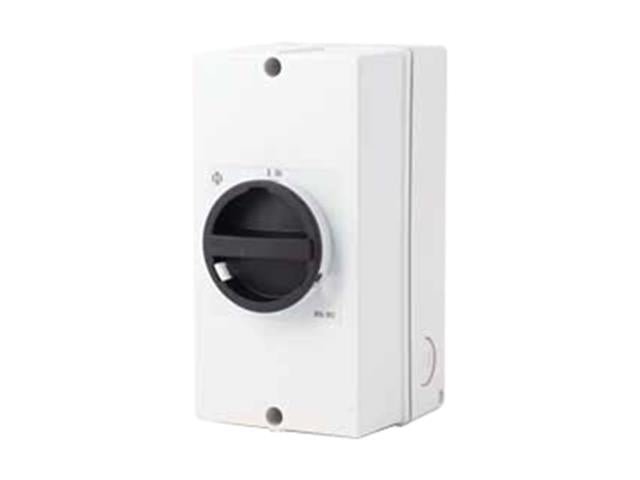

Single String DC Switch Disconnector 21A 800V - 20A 1000V , Max Cable:6mm , 100x178X93mm , 0.68kg

Single String DC Switch Disconnector

Specifications

  • IP66/67 Protection
  • Black/Grey Padlockable Handle – lockable in the OFF-position
  • Class II compliant, Grey Insulated Enclosure
  • Switch Interlocked with lid to prevent opening in “ON” position
  • Rated for use in ambient temperatures of 50°C
  • Plastic Enclosures, Protection IP66/67, totally insulated, M20/M25 knock-outs
  • Handle black, Plate Backing grey
  • Contact development: 2 pole, 6 contacts per circuit (2 x 3 in series)
  • Dimensions (w x h x d): 100mm x 178mm X 93mm
  • Weight: 0.68 kg
  • Rated Power: 9,600 W
  • Poles: 2
  • Max Cable: 6 mm2
  • Max Voltage: 1,000 V
  • Rated Current: 21 A
  • Rated Voltage: 800 V
  • Rated Current: 20 A
  • Rated Voltage: 1000 V

Downloads

Additional Information

Device Switch Disconnector
Type Single String | DC
