LIF240-10B12R2

Name: LIF240-10B12R2 - Communica [Part No: LIF240-10B12R2]
Brand: Mornsun
SKU: LIF240-10B12R2
Price: 1483.45 ZAR
Availability: InStock

SKU: LIF240-10B12R2

BRAND: Mornsun

R 1,705.97_{(inc VAT)}
R 1,483.45_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

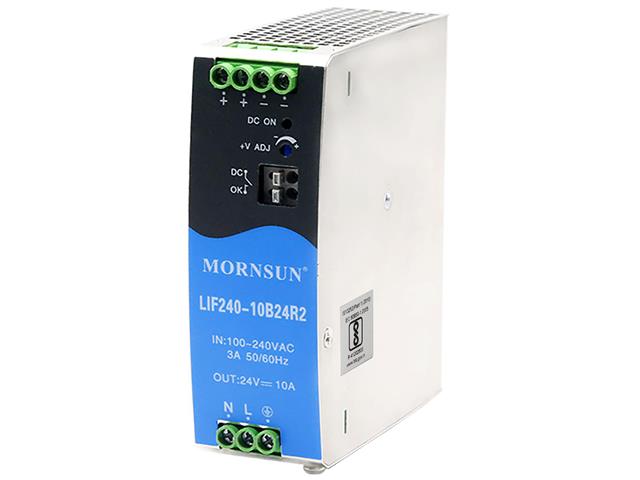

DIN Rail Metal Case Switch Mode Power Supply w/Active PFC. Input: 85 ~ 264VAC/120 - 370VDC. Output 12VDC @ 16A Hi Reliability (SDR240-12)

DIN Rail Metal Case Switch Mode Power Supply

Overview

LIF240-10BxxR2 is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standardDIN-railmounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, andother industrialequipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design andthestandardrailinstallation for space saving. With good EMC performance, compliant with international IEC/EN/UL/BS EN 62368, UL61010 standards for EMCand safety

Feature

Universal 85 - 264VAC or 120 - 370VDCInput voltage
Accepts AC or DC input (dual-use of sameterminal)
Operating ambient temperature range: -40℃to+70℃
High efficiency, high reliability
DC OK function
Built-in active PFC function
150% peak load output for 3 seconds
LED indicator for power on
Output short circuit, over-current, over-voltage, over-temperature protection
Safety according to IEC/UL/BS EN 62368  Operating altitude up to 5000m
OVC Ⅱ
Indoor use

Downloads

Datasheet-LIF240-10BxxR2

Additional Information

Device	AC/DC Convertor
Size	W-41mm x H-110mm x D-124mm

Experience reliable power with the LIF240-10B12R2 DIN Rail Metal Case Switch Mode Power Supply. Designed for industrial applications, this efficient AC-DC converter delivers 12VDC at 16A, ensuring stability and noise immunity in harsh environments. With built-in safety features and a compact design, it’s the perfect solution for your control equipment needs.
