LIHF240-23B48

Name: LIHF240-23B48 - Communica [Part No: LIHF240-23B48]
Brand: Mornsun
SKU: LIHF240-23B48
Price: 3571 ZAR
Availability: InStock

SKU: LIHF240-23B48

BRAND: Mornsun

R 4,106.65_{(inc VAT)}
R 3,571.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Din Rail Power Supply, Switch Mode Power Supplies

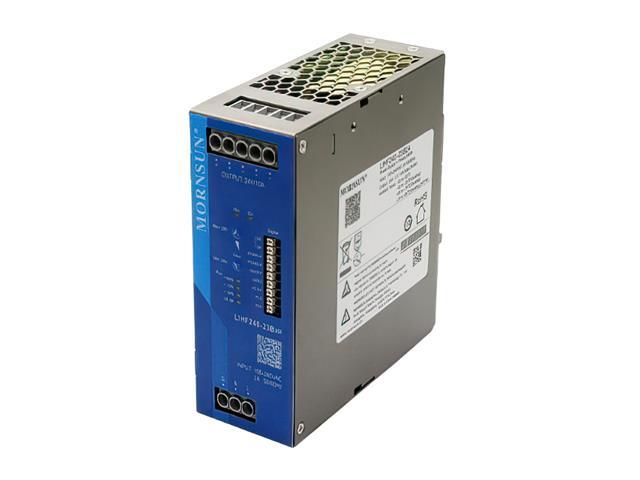

DIN Rail Metal Case Hi End/Hi Reliability Switch Mode Power Supply with Active PFC. Input: 85 ~ 277VAC/120 - 390VDC. Output 48VDC @ 5A IECEx/Atex Certified

Reliability Switch Mode Power Supply

Feature

Universal 85 - 277VAC or 120 - 390VDC Input voltage
Operating ambient temperature range: -40℃ to +85℃, full load at 60℃
High efficiency, high reliability
Transient peak current function: 6 times rated current for 15ms
Up to 200% (PN) dynamic power for 5s
Continuous static power margin of up to 125% (PN)
Support 5+1 bus high precision parallel current sharing
Active PFC, PF＞0.98
Support DC OK, AC OK, remote control function
Support ModBus communication protocol
Double-sided conformal coating, salt-spray proof, explosion-proof
Operating altitude up to 5000m
OVC III (design refer to EN62477, 2000m)
OVC II
Pollution degree 2
Output short circuit, over-current, over-voltage, over-temperature protection, input under voltage protection
Safety according to ATEX, IECEx increased safety type explosion-proof certification
Safety according to ANSI/ISA 71.04-2013 G3
Safety according to IEC/UL62368, GB4943, IEC/EN61010, EN61558, EN62477, IEC60079, GB3836, NB/T31017

Downloads

Datasheet - LIHF240-23B48

Additional Information

Device	Power Supply
Type	Reliability \| Switch Mode

Experience unparalleled reliability with the LIHF240-23B48 Switch Mode Power Supply. Designed for harsh environments, it delivers 48VDC at 5A with active PFC and robust safety certifications, ensuring optimal performance in demanding applications. Ideal for industrial use, its high efficiency and extensive protection features make it a trusted choice for your power needs.
