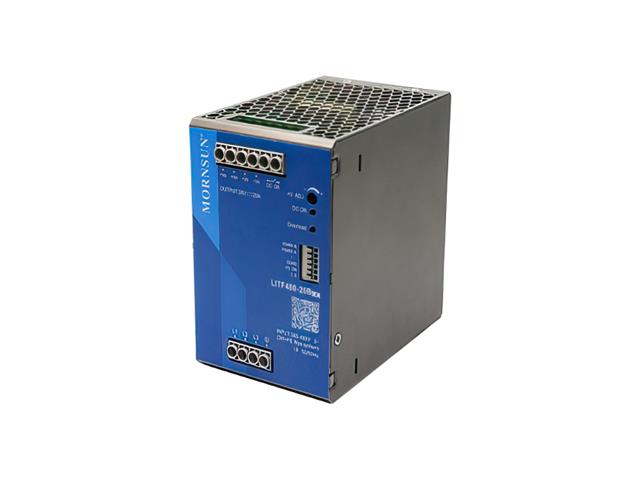

LITF480-26B24

Name: LITF480-26B24 - Communica [Part No: LITF480-26B24]
Brand: Mornsun
SKU: LITF480-26B24
Price: 3388 ZAR
Availability: InStock

SKU: LITF480-26B24

BRAND: Mornsun

In Stock
R 3,896.20_{(inc VAT)}
R 3,388.00_{(ex VAT)}

Collections: Power

DIN Rail Metal Case Three Phase Power supply with Active PFC. input 320 ~ 600VAC/450- 800VDC. Output 48VDC @ 20A

DIN Rail Metal Case Three Phase Power supply

Input Type	AC or DC
Number of Outputs	1
AC Voltage - Input	320 ~ 600 VAC
DC Voltage - Input (Min)	450V
DC Voltage - Input (Max)	800V
Voltage - Output 1	24V
Current - Output (Max)	20A
Power (Watts)	480W
Voltage - Isolation	4 kV
Applications	Industrial, ITE (Commercial), Laboratory
Efficiency	95%
Operating Temperature	-30°C ~ 70°C (With Derating)
Features	Adjustable Output, Load Sharing, Remote On/Off, Universal Input
Size / Dimension	5.00" L x 3.15" W x 4.88" H (127.0mm x 80.0mm x 124.0mm)
Approval Agency	CE, cULus, UKCA
Standard Number	61010-1; 62368-1; UL 508
Minimum Load Required	No

Device	Power Supply
Type	DIN Rail \| Metal Case \| Three Phase
