LITF480-26B48

SKU: LITF480-26B48

BRAND: Mornsun

In Stock
R 3,896.20_{(inc VAT)}
R 3,388.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Modular Multiple Output Power Supply

Modular Multiple Output Power Supply O/P DCV:2x0-20VDC @ 2x1A & 1x0-5VDC @ 1x2.5A I/P:220-240VAC 50Hz 3Digit Display (200x145x60) 0.8kg

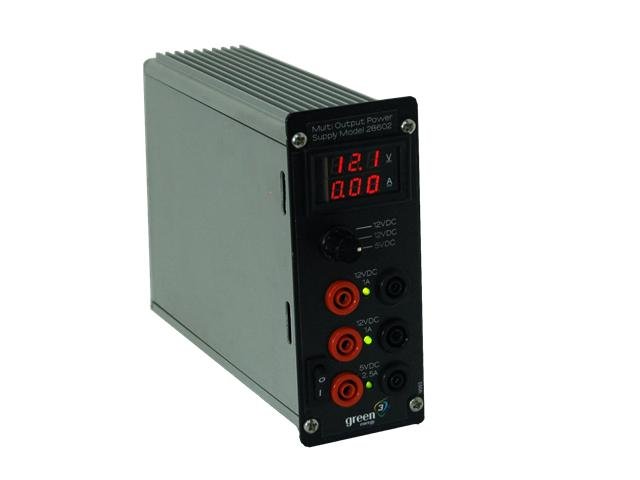

Modular Multiple Output Power Supply

Feature

This Module is a Fixed output Power Supply Module. Takes up 1 slot in a Casing.
Provides 3 different outputs at the same time.
Turn the dial to select which output is displayed on the Digital Display

Specifications

Input : 220-240VAC 50Hz
Output DC Voltage : 2x 12VDC 1A Fixed : 1x 5VDC 2.5A Fixed
Load Regulation : 0.02% + 2mV
Line Regulation : 0.02% + 2mV
Ripple and Noise : 10mV (rms)
Digital Display : 3 Digit
Voltage Display Accuracy : -0.5% reading + 1 digit
Current Display Accuracy : -0.5% reading + 1 digit
Temperature Coefficient : V 0.1% + 2mV/deg C
Temperature Coefficient : A 0.1% + 2mV/deg C
Temperature Range : 0 - 35 C
Duty Factor : 100%
Dimensions (mm) : 175x57x145
Weight (kg) : 0.8Kg

Downloads

Datasheet - 28602

Additional Information

Device	Power Supply
Type	Modular \| Multiple \| Output
