LM200-10B15

Name: LM200-10B15 - Communica [Part No: LM200-10B15]
Brand: Mornsun
SKU: LM200-10B15
Price: 600 ZAR
Availability: InStock

SKU: LM200-10B15

BRAND: Mornsun

R 690.00_{(inc VAT)}
R 600.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case Small Outline Switch Mode Power Supply Input: 180 ~ 264VAC (Switch)/240 - 370VDC. Output 15VDC @ 14A. Terminal Block Term.

Small Outline Switch Mode Power Supply

Overview

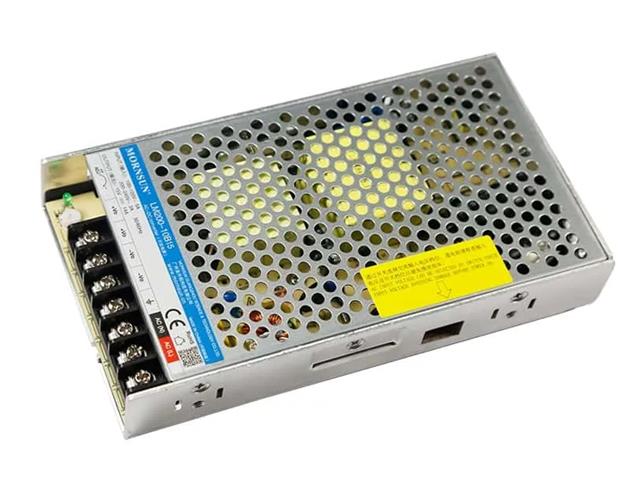

LM200-10B15 is one of Mornsun’s enclosed AC-DC switching power supply. It features selectable AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency and high reliability. These power supply offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc

Feature

Selectable AC input range: 90 ~ 132VAC/180 ~ 264VAC
DC input range: 240 ~ 373VDC(Switch in position of 230)
Ultra low standby power consumption: < 0.75W @230VAC
Operating ambient temperature range: - 30℃ ~ +70℃
Compact size with 1U low profile
LED indicator for power on
Output short circuit, over-current, over-voltage, over-temperature protection
Safety according to IEC/EN/UL62368, EN60335, GB4943
Withstand 300VAC surge input for 5s (Switch in position of 230)
Operating altitude up to 5000m

Specifications

Type	Enclosed Type Single Output
Output Power	210W
Series	LM200-10B
Part Number	LM200-10B15
Mechanical Form	Enclosed
IP Level	Non-Waterproof
Output Voltage	15V
Output Current	14A

Downloads

Datasheet - LM200-10B15

Additional Information

Device	Power Supply
Type	Small Outline \| Switch Mode

Discover the LM200-10B15, an efficient and reliable switch mode power supply designed for versatile applications. With a compact size and exceptional performance, it delivers 15VDC at 14A while ensuring low standby power consumption. Perfect for industrial, telecommunications, and smart home projects, this power supply meets stringent safety standards, making it a smart choice for your power needs.
