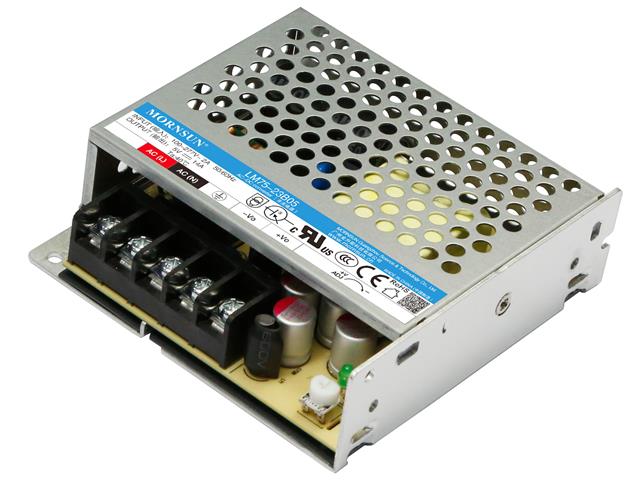

LM75-23B05

Name: LM75-23B05 - Communica [Part No: LM75-23B05]
Brand: Mornsun
SKU: LM75-23B05
Price: 369.50 ZAR
Availability: InStock

SKU: LM75-23B05

BRAND: Mornsun

R 424.93_{(inc VAT)}
R 369.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 5VDC @ 14A. Terminal Block Term. 4KVAC Isolation (LRS-75-5) (Metal Case 5V - 14A)

Small Outline Switch Mode Power Supply

Overview

LM75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the sametimeacceptsDC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforcedinsulation. Theseconverters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN61558, GB4943standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart homeetc

Feature

Universal 85 - 305VAC or 120 - 430VDCInput voltage
Accepts AC or DC input (dual-use of sameterminal)
Operating ambient temperature range: -30℃to+70℃
Low standby power consumption, highefficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltageprotection
Over-voltage class Ⅲ
Operating altitude up to 5000m

Downloads

Datasheet-LM75-23Bxx

Additional Information

Device	Power Supply
Type	Small \| Outline \| Switch Mode
Size	99.00 x 97.00 x 30.00 mm

Discover the LM75-23B05 Metal Case Switch Mode Power Supply, designed for versatile use with a wide input range of 85-305VAC or 120-430VDC. Offering 5VDC at 14A, it ensures high efficiency and reliability, perfect for industrial applications and smart home systems. With robust protection features and low noise, this power supply is your ideal solution for reliable performance and energy savings.
