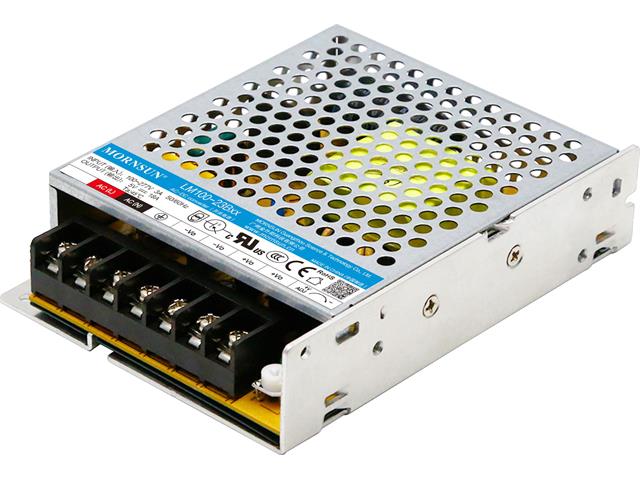

LM75-23B48

Name: LM75-23B48 - Communica [Part No: LM75-23B48]
Brand: Mornsun
SKU: LM75-23B48
Price: 353.16 ZAR
Availability: InStock

SKU: LM75-23B48

BRAND: Mornsun

R 406.13_{(inc VAT)}
R 353.16_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

Metal Case Switch Mode Power Supply Input: 85 ~ 305VAC/120 - 430VDC. Output 48VDC @ 1,6A. Terminal Block Term. 4KVAC Isolation (LRS-75-48) (Metal Case 48V - 1,6A)

Small Outline Switch Mode Power Supply

Overview

LM75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the sametimeacceptsDC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforcedinsulation. Theseconverters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN61558, GB4943standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart homeetc

Feature

Universal 85 - 305VAC or 120 - 430VDCInput voltage
Accepts AC or DC input (dual-use of sameterminal)
Operating ambient temperature range: -30℃to+70℃
Low standby power consumption, highefficiency
High I/O isolation test voltage up to 4000VAC
Low ripple & noise
Output short circuit, over-current, over-voltageprotection
Over-voltage class Ⅲ
Operating altitude up to 5000m

Downloads

Datasheet-LM75-23Bxx

Additional Information

Device	Power Supply
Type	Small \| Outline \| Switch Mode
Size	99.00 x 97.00 x 30.00 mm

The LM75-23B48 is a reliable switch mode power supply that delivers 48VDC at 1.6A with universal AC/DC input, ensuring versatility for industrial and smart home applications. Designed for high efficiency and low standby power consumption, it features advanced protection against short circuits and over-voltage, making it a safe choice for your projects. With its compact size and robust metal case, this power supply combines performance and durability for all your power needs.
