LMF1000-20B24

Name: LMF1000-20B24 - Communica [Part No: LMF1000-20B24]
Brand: Mornsun
SKU: LMF1000-20B24
Price: 4758.74 ZAR
Availability: InStock

SKU: LMF1000-20B24

BRAND: Mornsun

R 5,472.55_{(inc VAT)}
R 4,758.74_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Power

Type: Power Supplies

Category: Metal Case Power Supply, Switch Mode Power Supplies

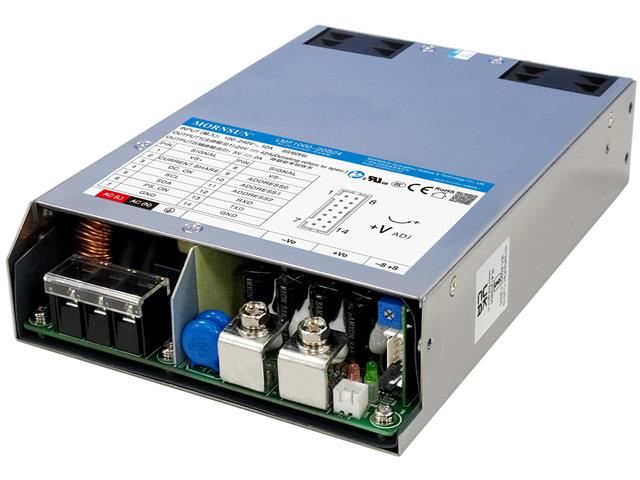

Metal Case Switch Mode Power Supply with Active PFC. Input: 90 ~ 264VAC/120 - 430VDC. Output 24VDC @ 42A + 5V @ 2A. Built-in Variable Speed DC Fan

Metal Case Switch Mode Power Supply

Feature

Wide range Input voltage 90 - 264VAC or 120 - 370VDC
Accepts AC or DC input (dual-use of same terminal)
Operating ambient temperature range: -40℃ to +70℃
(Non-condensing)
High reliability, efficiency up to 94%
Wide range of adjustable output voltage
Output short circuit, over-current, over-voltage protection,
over-temperature protection
Support 3+1 parallel redundancy, current sharing
Built-in active PFC function
Operating up to 5000m altitude
Fan speed automatic adjustable
Safety according to IEC62368, ES/EN60601

Downloads

Datasheet - LMF1000-20B24

Additional Information

Device	Power Supply
Type	Metal Case \| Switch Mode
Input Voltage	90 ~ 264VAC/120 - 430VDC
Output	24VDC @ 42A + 5V @ 2A
Size	190.0 x 127.0 x 40.5 mm

Elevate your power solutions with the LMF1000-20B24 Metal Case Switch Mode Power Supply. Delivering reliable 24VDC @ 42A and 5V @ 2A with high efficiency (up to 94%), it features built-in protection against short circuits, over-currents, and over-temperature. Its wide input range and robust design ensure optimal performance in challenging conditions, making it the perfect choice for demanding applications.
