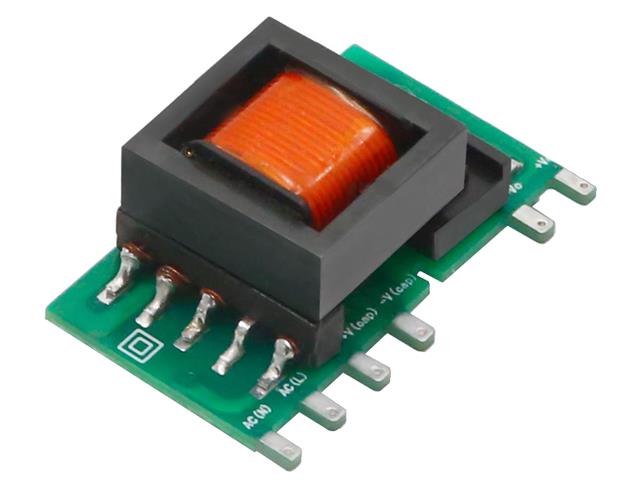

Open Frame Miniature Vertical PCB Switch Mode Power Supply Input: 85 ~ 305 VAC/100 - 430 VDC. Output 15VDC @ 670mA
Open Frame Miniature Vertical PCB Switch Mode Power Supply
Overview
LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range acceptingeitherAC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitablefor industrial
control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t havehighrequirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this data sheet
Feature
- Ultra-wide 85 - 305VAC and 70 - 430VDCinput voltagerange
- Accepts AC or DC input (dual-use of sameterminal)
- Operating ambient temperature range -40℃to+85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- Controllable life and adjustable cost
- No-load power consumption 0.1W
- Output short circuit, over-current protection
- Designed to meet IEC/EN/UL62368, IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval (LS05-13BxxR3series)
- EN62368 safety approval (LS05-13BxxR3-F series)
Downloads
Additional Information
| Device |
AC/DC Converter |
| Type |
Open Frame | Miniature Vertical | PCB | Switch Mode |
| Size |
32.00 x 17.20 x 15.05 mm |
Discover the LS10-13B15R3 Open Frame Miniature Vertical PCB Switch Mode Power Supply, designed for high efficiency and reliability. With an ultra-wide input range and compact size, this powerful AC/DC converter is perfect for industrial control and smart home applications, ensuring low power consumption and robust performance. Upgrade your systems with this versatile, high-density solution that meets strict safety standards.
