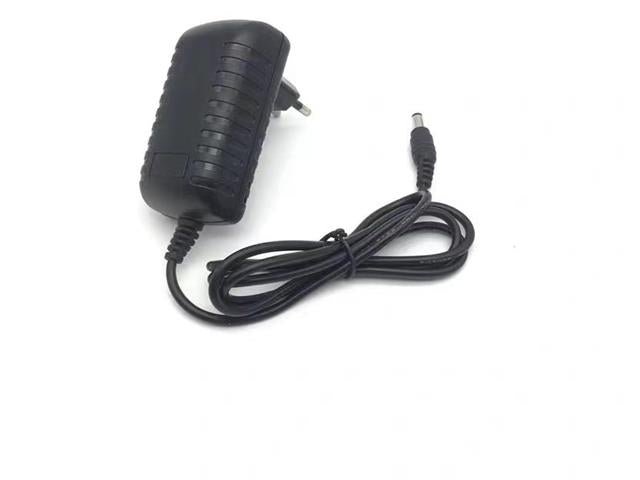

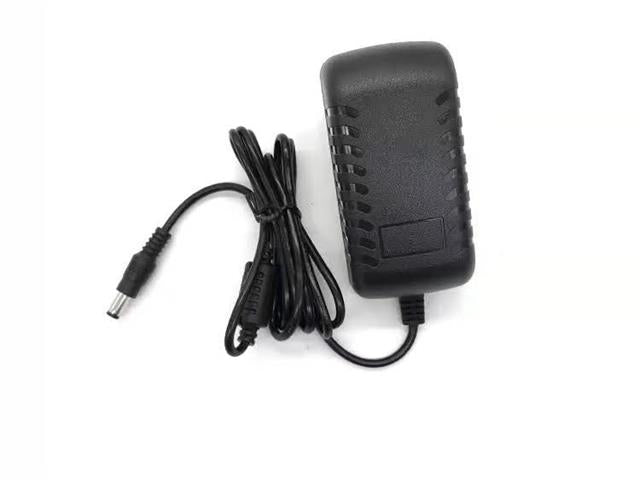

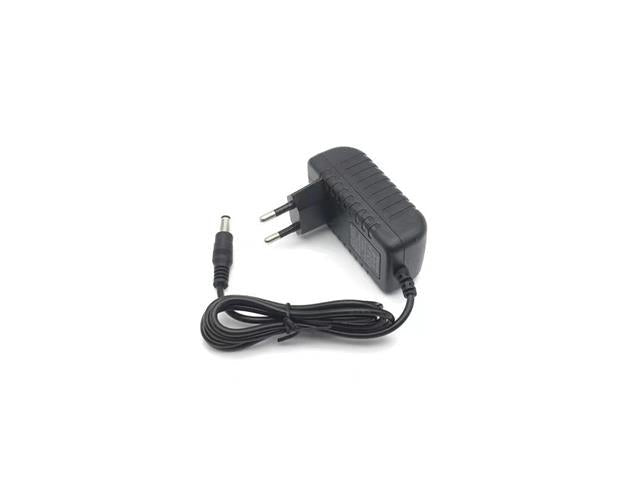

Regulated AC Adapter. Input 100 – 240VAC (2 Pin EU Plug). Output 5VDC, 2.5 A (5.5x2.1mm Centre-Positive Barrel Jack). Cord Length 1.2m
Regulated AC Adapter
Feature
- This is a 5V 2.5A power adapter with an ac input & dc output.
- Input: 100 to 240Vac (2 pin EU plug)
- Output: 5Vdc, 2.5A (5.5x2.1mm centre-positive barrel jack)
Specifications
INPUT
- Plug type : Two pin EU plug
- Input voltage rating : 100Vac to 240Vac
- Input voltage range : 90Vac to 270Vac
- Input frequency range : 47Hz to 63Hz
- Maximum inrush current
- 30A for 100Vac @ full load
- 75A for 240Vac @ full load
- Input current : 0.1A max @ 90V/60Hz full load
- Standby power load : 0.1W max @ 254V/50Hz no load
OUTPUT
- Plug type : 5.5x2.1mm centre-positive barrel jack
- Cord length : 1.2m
- Output voltage : +5V
- Output voltage tolerance : +/- 0.6V
- Min load current : 0mA
- Max load current : 2.5A
- Line regulation +/- 1%
- Load regulation +/- 5%
- Ripple and noise : 150mV p-p
Downloads
Additional Information
Device |
Adapter |
Type |
Regulated | AC |
