General

• System : Tri-angular module support for pitched and flat roof with roof penetration

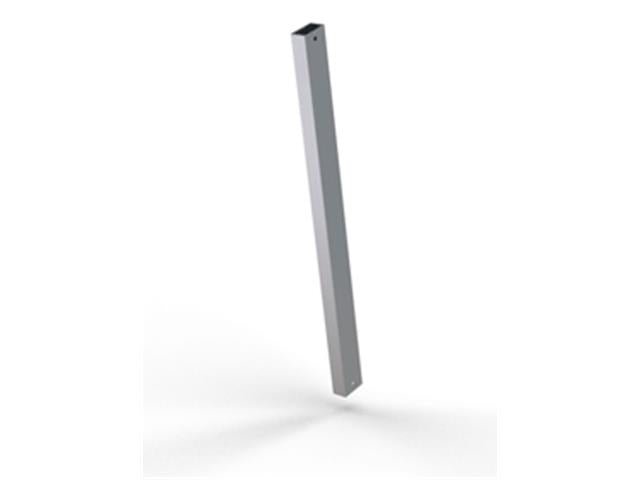

• Content : Tri-angle (pre-assembled or non-assembled), back support
• System warranty : 10 years
• Application Area : Pitched and flat roofs on commercial, industrial and agricultural buildings
• Roof covering : Sheet metal (trapezoidal/corrugated), sandwich, fibre-cement
• Roof slope : Orthogonal installation to roof slope: min. 2°/max. 25°. Parallel installation with roof slope: min. 2°/max. 45°
• Attachement to roof with : MS+, MS+P, VS+

System properties

• System orientation : One sided installation
• Module tilt : 10° to 35° in steps of 5°
• Material : Stainless steel, aluminum

Modules

• Type : PV-Modules with frame height from 30 to 50mm
• Module orientation : Horizontal/Landscape and vertical/Portrait
• Module size (Portrait) : Length: max. 1,960 mm, Width: unlimited
• Module size (Landscape) : Length: unlimited, Width: max. 1,050 mm

Certifications

• TÜV : ID:0000048970 according to 2 PfG
• Static calculation : Verifiable calculations by HZI Engineering Bonn

Services

• PV layout : Provided by Renusol
