SPD3303C

Name: SPD3303C - Communica [Part No: SPD3303C]
Brand: Siglent
SKU: SPD3303C
Price: 6250 ZAR
Availability: OutOfStock
Rating: 5.00 (2 reviews)

SKU: SPD3303C

BRAND: Siglent

Sold Out
R 7,187.50_{(inc VAT)}
R 6,250.00_{(ex VAT)}

Collections: Power

Type: Power Supplies

Category: Bench Top Power Supply, Linear Programmable DC Power Supply

Siglent Linear Programmable DC Power Supply 3CH, CH1:O/P Current:0~3.2A, CH2:O/P Voltage & Current:0~32V 0~3.2A, CH3:O/P Voltage & Current:2.5V/3.3V/5V 3.2A, Resolution:10mV/10ma, Display:32V Full Scale 4 Digits, (275×225×136mm) 7.5kg

Linear Programmable DC Power Supply

Overview

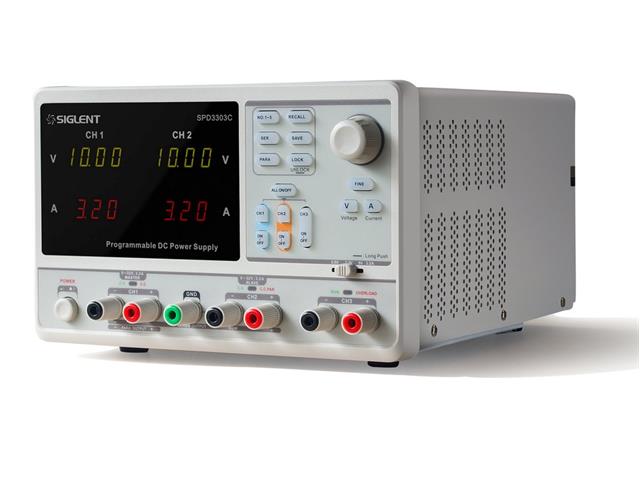

The SPD3303C is a LED display screen programmable linear DC power supply that is both lightweight and feature-packed. It has three independent outputs: two sets of adjustable voltage / current and a fixed set of selectable voltages; 2.5, 3.3, and 5 V. In addition, the ‘3303C has outputs that are short-circuit and overload protected. Total power is 220 W. It has three available operation modes; independent, series and parallel modes. The SPD3300C has a high performance-to-price ratio and can be used in various types of production, education and research environments.

Feature

Smart temperature controlled fan, effectively reduces the fan noise
Save/Recall 5 group system set-ups, supports data storage expansion
Connected to PC via USB Device, support SCPI command, to meet the control and communication needs

Specifications

3 independent high precision outputs: two 32 V /3.2 A, one 2.5 V / 3.3 V / & 5 V / 3.2 A, total 220 W power
4 digit voltage and 3 digit current display, min resolution: 10 mV, 10 mA
Three output modes: independent, series and parallel
100/120/220/230 V compatible design, to meet the needs of various power grids

Downloads

Datasheet - SPD3303C

Additional Information

Device	Power Supply
Type	Linear \| Programmable \| DC

Experience precision and versatility with the SPD3303C Linear Programmable DC Power Supply. Featuring three independent outputs, adjustable voltage, and current settings, this lightweight power supply is perfect for production, education, and research. With short-circuit protection and smart fan technology, it ensures safety and quiet operation while delivering reliable performance for all your power needs.

Great power supply

Great power supply so far. The USB SCPI functionality is great for test jig automation and easy to get going. Serial channels are also very useful to have.
