Switch Mode DC Power Supply, Single Channel, O/P Voltage: 0~30V, O/P Current 0~5A, Ripple & Noise:≤2mVrms , O/P RES:CV: 10mV (typical), CC: 1mA (typical) , O/P Power:150W, Reliability:MTBF(e): ≥2000hrs, 105x165x249mm, 4kg
Switch Mode DC Power Supply
Overview

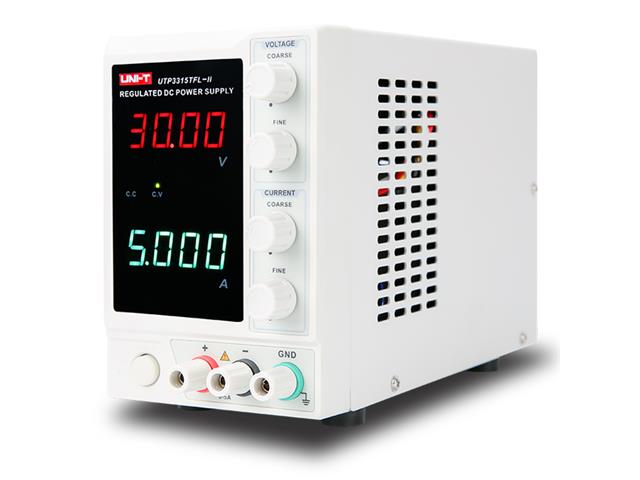

The UNI-T UTP3315TFL-II is a high-performance single-channel linear DC power supply designed for electronics professionals, laboratories, and manufacturing environments that require greater current capacity and superior power stability. With its enhanced 0-5A current output, high-precision regulation, and ultra-low noise characteristics, this powerful yet economical benchtop power supply delivers the clean, stable power needed for demanding electronics development, testing, and production applications.
Feature
-
Enhanced Power Capacity: 0-30V voltage range with 0-5A current output for demanding applications
-
High-Resolution Display: 4-digit voltage and current display with 10mV/1mA precision
-
Ultra-Clean Power: Exceptionally low ripple and noise (≤2mVrms) for sensitive electronics
-
Superior Load Regulation: CV≤0.01%+5mV, CC≤0.1%+10mA for consistent power delivery
-
Automatic Mode Switching: Seamless transition between constant voltage (CV) and constant current (CC) modes
-
Comprehensive Protection: Current limiting protection safeguards components and circuits
-
Professional Design: Robust construction with user-friendly interface in a compact form factor
-
Outstanding Reliability: MTBF(e) of ≥2000hrs for dependable long-term operation
-
Universal Power Input: Compatible with 110V/220V±5% AC, 50Hz/60Hz power sources
-
Complete Package: Includes international standard power cord and test output line
Specifications
| Function |
Range |
| DC Voltage |
0V – 1000V |
| AC Voltage |
0V – 1000V |
| DC Current |
0A – 10A |
| Resistance |
0.2Ω – 20MΩ |
| dB Measurements |
1dB – 28dB |
| Continuity |
Yes |
| Diode Test |
Yes |
| Battery Test |
Yes |
| Transistor Test PNP Transistors |
Yes |
| Digital Display |
Analogue |
| Overrange Indication |
Yes |
| Enclosure |
Rubber holster |
| Batteries |
1 x 9V and 2 x AA |
| Weight |
280g |
| Dimensions |
170 x 110 x 50mm |
| Safety Specs |
CAT II 600V |
Downloads
Additional Information
| Device |
Power Supply |
| Type |
Switch Mode | DC |
Discover the UNI-T UTP3315TFL-II, a high-performance switch mode DC power supply perfect for electronics professionals and laboratories. With an impressive output of 0-30V and 0-5A, it ensures stable, ultra-clean power with minimal ripple, making it ideal for sensitive applications. Enjoy reliable performance and a user-friendly design that enhances your testing and development experience.
