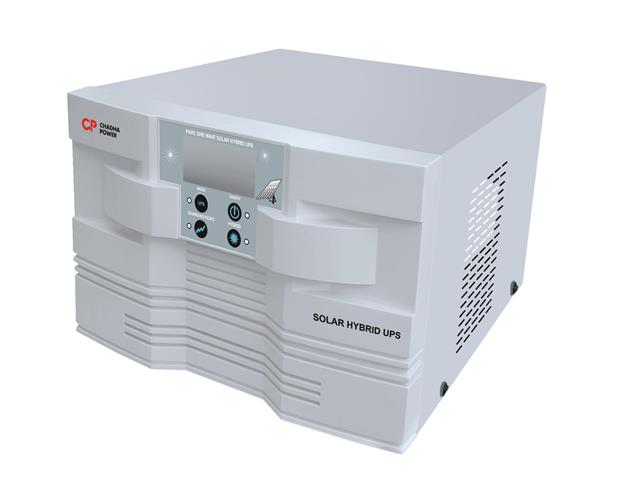

Chadha Power UPS/Inverter 1450VA 24VDC Pure Sine Wave 1160W, Max Solar I/P: 900W, Max Solar Charging CurrenT:30A, PWM Controller, 400x370x250mm, 17Kg, {Not Compatable with Omni Power / Lithium & Gel Batteries}
Power UPS/Inverter
Feature
- Output Wave Form : Sinusoidal Wave Form
- Power Card Design : Microcontroller Based, MOSFET Topology
- Power Transformer Design : Copper Winding
- Charging Technology : ASIC (Automatic Sense Intelligent Control)
- Cooling : Air Cooled by in-built ventilation cooling fan
- Mains Low Voltage Charging Available (8~10Amp Current at 120V Mains Input if battery voltage below 13V)
- Wide Voltage Range : Wide Voltage Range from 90V - 300V for Charging
- 8 Display Type : LCD & LED Indicator
- Solar Charge Controller Rating : 30Amp (for upto 1450VA) & 50Amp (for 2KVA only)
- Solar Charge Controller Type : PWM Hybrid
Protections
- Output Short Circuit Protection with Audio Alarm
- Battery Reverse Protection Through DC Fuse
- Short Circuit Protection at Mains Mode through AC Fuse with Audio Alarm
- Battery Under Voltage and Over Voltage Charge Protection
- Intelligent Overload Sensing Circuitry with auto retries facility with Audio Alarm
- Phase Reverse Protection as Short Circuit with Audio Alarm
- Over Temperature Protection with Audio Alarm
- PV Reverse Protection with audio alarm
- Reverse Current Flow Protection
Specifications
- No Load Output Voltage : 220V ± 7V
- Charging Current (±1A) : HC-17A NC-12A
- Transfer Time (UPS Mode) : < 10msec
- Battery Boost Voltage (± 0.2V/ Batt.) : 28.8V
- Battery Float Voltage (± 0.2V/ Batt.) : 27.4V
- Charging Voltage Range (Normal Mode) : 90 VAC - 300 VAC
- Charging Voltage Range (UPS Mode) : 180 VAC - 270 VAC
- Output Frequency (Back-up Mode) : 450 Watt
- Output Wave Form : Pure Sine Wave
- Maximum Solar Input 900 Watt
- Maximum Solar Charging Current (± 2Amp) : 30Amp
- Charge Sharing : Available
- Total Harmonics Distortion (THD) : <5% at Linear Load
- Operating Temperature Range : 0° C to 45° C
- Over Temperature Range : 95° C ± 10° C
- Over Load Retries : 6 Time Auto Retries
- Battery Low Retries : 4 Time Auto Retries
- Battery Low Pre-Alarm (± 0.2/Batt.) : 21.6V
- Battery Low Cut-Off (± 0.2/Batt.) : 21.0V
- Short Circuit Retry Available
- 21 Overload/Short Circuit/ Battery Low Reset : Through ON/OFF Switch or Mains Input
Weights and Dimensions
- Dimensions (±10 mm) : 400x370x250
- Net Weight (±0.5 Kg) : 17.000 Kg
- Gross Weight (±1 Kg) : 18.000 Kg
