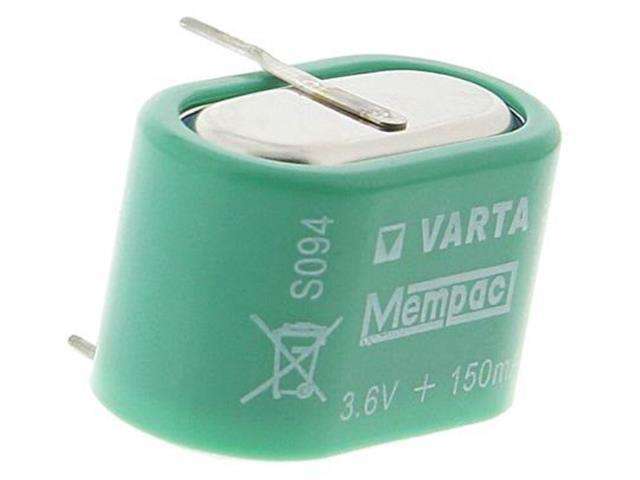

V150H

• Good recovery characteristics after long storage period and deep discharge
• Sealed rechargeable Ni-MH Button Cells from VARTA Microbattery can be operated in any position
• The cells complete the manufacturing process in a charged state
• Because of time and temperature depending self- discharge, the state of charge upon receipt can not be precisely defined. Before use, therefore, sealed Ni-MH cells should be recharged.

 Electrical Specifications

• Nominal Voltage : 3.6 V
• Typical Capacity : 150 mAh
• Maximum Discharge current : 280 mA cont.

• Width : 26.8 mm
• Height : 17.7 mm
• Length : 15.3 mm
• Typical weight : 15 g
• Pin Distance (P) : 10.0 mm
• Length (L) : 17.7 mm
• Pin Diameter : 0.64mm
