VICT BATTERY BALANCER

SKU: VICT BATTERY BALANCER

BRAND: Victron


🚚
Delivery time: 2-5 working days for South Africa
In stock - Ready for immediate dispatch
Free shipping for orders over R1,000.00

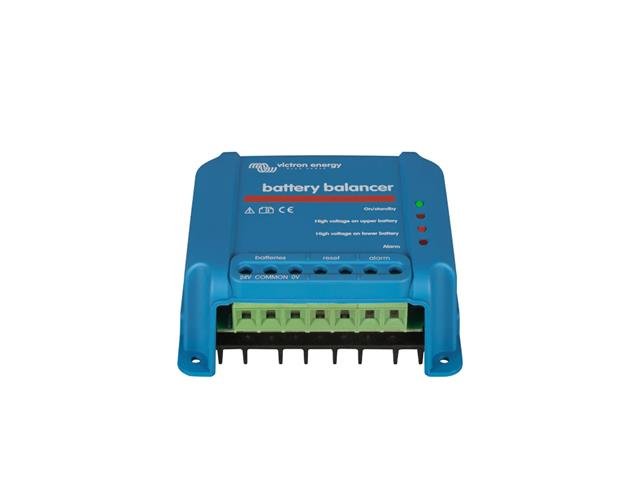

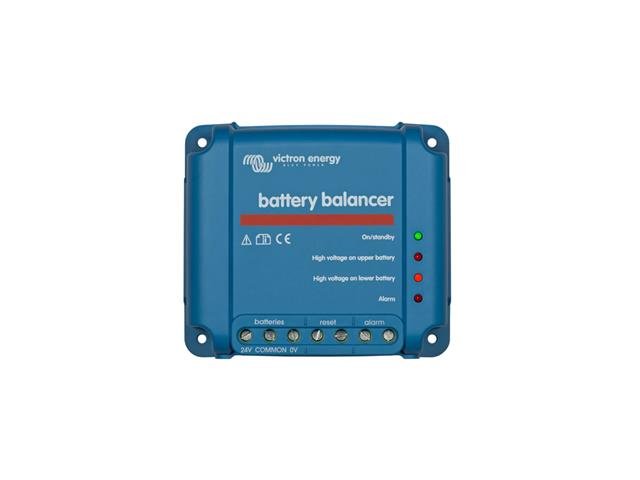

Victron Battery Balancer IP22 {100x113x47mm} 0,4Kg

Victron Battery Balancer IP22

Overview

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

Specifications

Victron Battery Balancer

  • Input voltage range : Up to 18V per battery, 36V total
  • Turn on level : 27,3V +/- 1%
  • Turn off level : 26,6V +/- 1%
  • Current draw when off : 0,7 mA
  • Midpoint deviation to start balancing : 50 mV
  • Maximum balancing current : 0,7A (when deviation > 100 mV)
  • Alarm trigger level : 200 mV
  • Alarm reset level : 140 mV
  • Alarm relay : 60V / 1A normally open
  • Alarm relay reset : Two terminals to connect a push button
  • Over temperature protection : yes
  • Operating temperature : -30 to +50°C
  • Humidity (non-condensing) : 95%

ENCLOSURE

  • Colour : Blue (RAL 5012)
  • Connection terminals : Screw terminals 6 mm2 / AWG10
  • Protection category : IP22
  • Weight : 0,4 kg
  • Dimensions (h x w x d) : 100 x 113 x 47 mm

Downloads

Additional Information

Device Battery Balancer
Ensure your battery system operates at peak efficiency with the VICT Battery Balancer. This compact device equalizes the charge of two series-connected 12V batteries, enhancing longevity and performance. Easy to install and reliable, it safeguards against overcharging while optimizing energy use, making it essential for any battery setup.
