Victron All-In-One Communication Center Which Offers Complete Control Over Your System While Maximizing Performance, 8~70VDC, BMS-Can Port, 2xVE.Can Ports, Bluetooth, 78x154x48mm, BPP900451100, IP20
All-In-One Communication Center
Overview

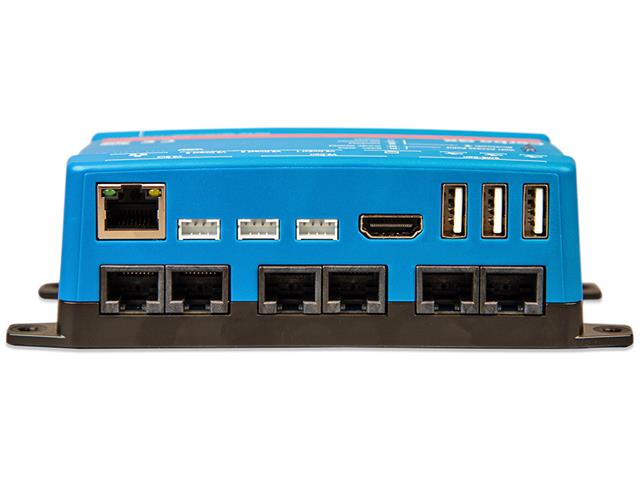

The Victron Cerbo GX MK2 is a versatile communication hub designed for monitoring and controlling energy systems. It serves as the central interface for Victron Energy's system components, allowing users to manage and optimize their energy setups remotely . The Cerbo GX MK2 is ideal for various applications, including off-grid solar systems, backup power solutions, and marine energy setups. Its comprehensive monitoring capabilities ensure efficient energy management and system optimization
Specifications
- Supply voltage: 8 – 70 VDC
- Power draw without GX Touch : 2.8 W @ 12 V
- Power draw with GX Touch : Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V
- Mounting : Wall or DIN rail (35 mm) (2)
Communication ports
- VE.Direct ports (always isolated) : 3 (max. possible VE.Direct devices: 15) (3)
- VE.Bus (always isolated) : 2 paralleled RJ45 sockets
- VE.Can
- Yes
- VE.Can 1 isolated
- VE.Can 2 non-isolated
- BMS-Can port : Yes – see VE.Can
- Bluetooth : Yes (4)
- Ethernet : 10/100 RJ45 socket - isolated except shield(7)
- WiFi : Built-in
- USB : 3USB Host ports
IO
- Resistive tank level inputs : 4
- Temperature sense inputs : 4
- Digital Inputs : 4
- Relays : 2 x NO/NC | DC up to 30 VDC: 6 A | DC up to 70 VDC: 1 A | AC: 6 A, 125 VAC
Other
- Outer dimensions (h x w x d) : 78 x 154 x 48 mm
- Operating temperature range : -20 to +50 °C
- IP Rating : IP20
Standards
- Safety : IEC 62368-1
- EMC : EN 301489-1, EN 301489-17
- Automotive : ECE R10-6
GX Touch 50 Flush / GX
- Mounting : Top/wall mount with included mounting accessories
- Protection cover
- Included with every GX Touch from serial number HQ2242
- Can also be purchased individually:
- Part # BPP900462050: GX Touch 50 protection cover
- Part # BPP900462070: GX Touch 70 protection cover
- Display Resolution : kkkGX Touch 50: 800 x 480GX | Touch 70: 1024 x 600
- IP Rating : IP54 (without connectors)
- Outer dimensions (h x w x d)
- GX Touch 50: 87 x 128 x 12.4 mm | GX Touch 70: 113 x 176 x 13.5 mm
- GX Touch 50 Flush: 94 x 136 x 12 mm | GX Touch 70 Flush: 120 x 184 x 13 mm
- Cable length : 2 meter
Downloads
Additional Information
| Device |
Communication Center |
| Type |
All-In-One |
