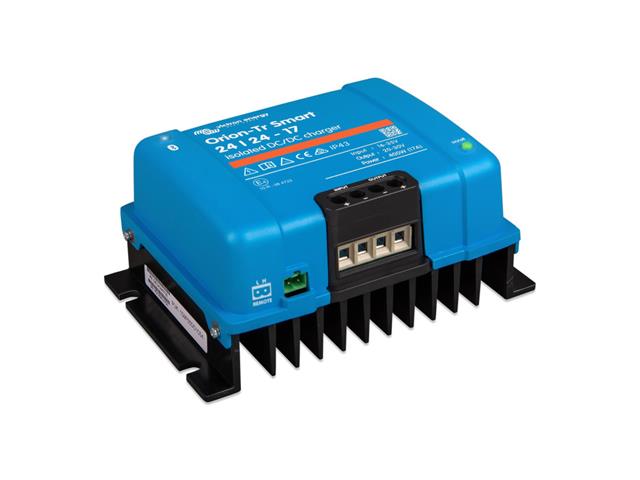

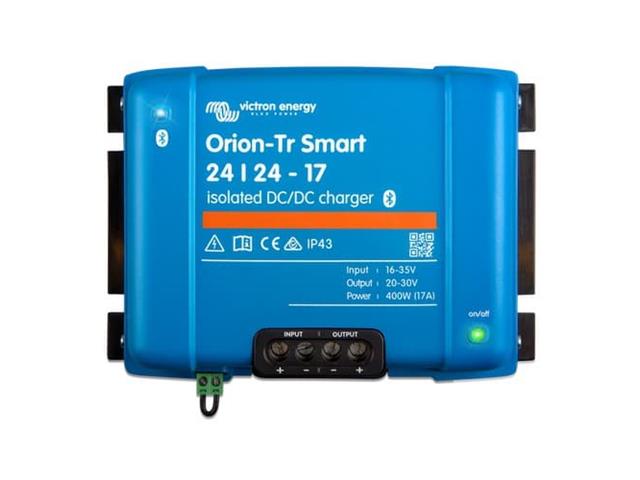

Victron Isolated DC-DC Charger, I/P Range:20~35V, O/P:24,2V, 400W, Max Cable Cross-section:16 mm² (AWG6), DC Connection:screw Terminals, +/- 0,2V , O/P Voltage ADJ Range:20~30V, 3-Stage Charger, 130x186x70mm, 1.6kg, IP43
Isolated DC-DC Charger
Specifications
- Orion-Tr Smart Chargers Isolated 360 - 400 Watt : 24/24-17 (400W)
- Input voltage range (1) : 20-35V
- Under voltage shut down : 14V
- Under voltage restart : 15V
- Nominal output voltage : 24,2V
- Output voltage adjust range : 20-30V
- Output voltage tolerance : +/- 0,2V
- Output noise : 2mV rms
- Cont. output current at nominal output voltage and 40°C : 17A
- Maximum output current (10 s) at nominal output voltage minus 20% : 25A
- Short circuit output current : 40A
- Cont. output power at 25°C : 480W
- Cont. output power at 40°C : 400W
- Efficiency 87% 88% 88% 89%
- No load input current : < 80mA
- Standby current : Less than 1mA
- Galvanic isolation : 200V dc between input, output and case
- Operating temperature range : -20 to +55°C (derate 3% per °C above 40°C)
- Humidity : Max. 95% non-condensing
- DC connection : Screw terminals
- Maximum cable cross-section : 16 mm2 (AWG6)
- Weight 12V input and/or : 12V output models: 1,8 kg (3 lb) Other models: 1,6 kg (3.5 lb)
- Dimensions hxwxd : 12V input and/or 12V output models: 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) Other models: 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
Downloads
Additional Information
| Device |
Charger |
| Type |
Isolated | DC-DC |
Enhance your power management with the VICT ORION-TR SMART 24/24 17A Isolated DC-DC Charger. Delivering a consistent 24.2V output and 400W power, this compact charger ensures efficient energy transfer while protecting your devices with advanced safety features. Perfect for various applications, it operates reliably in extreme conditions, making it an essential addition to your setup.
