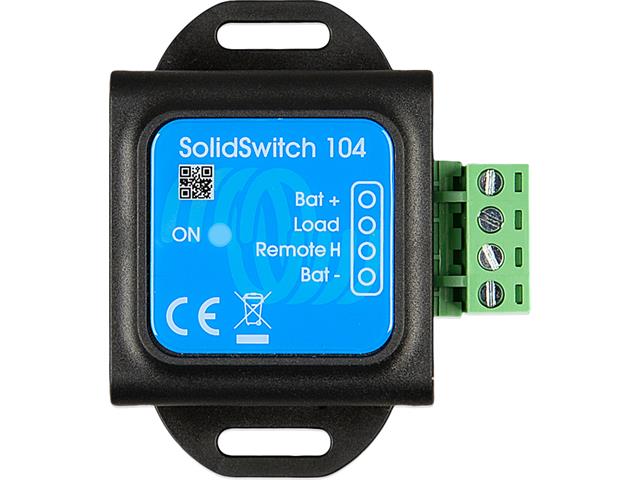

SolidSwitch 104

• Operating Input voltage range (Vbat) : 8 – 70V DC
• Maximum load current : 4A
• Maximum capacitive load
  • Vbat up to 15V: 1000 μF
  • 15V<Vbat<30V: 400 μF
  • 30V<Vbat<70V: 50 μF
• Maximum inductive load
  • Up to 1A: 1000 mH
  • 1A<I<2A: 100 mH
  • More than 2A: 10 mH
• Remote input (Vin)
  • Free floating or Vin< 3V: load off
  • 3,3V < Vin < 70V: load on
  • Min. input current to switch on: 30 μA
• Operating temperature : -20 to +50°C 0 - 120°F
• Humidity : Max. 95% (non-condensing)
• Protection grade : IP20
• Material and colour : ABS, matt black
• Dimensions (h x w x d) : 58 x 66 x 23 mm
