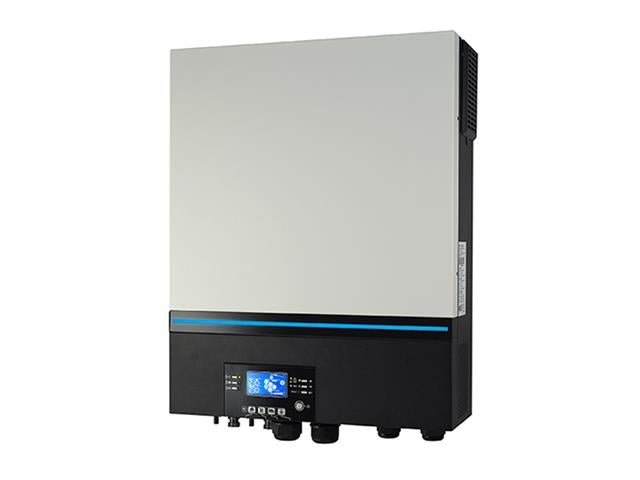

Voltronic Power Pure Sine Wave Inverter 11000VA/11000W 48VDC ,O/P:230VAC , MAX PV:11000W OCV:500VDC, Surge Power:22000VA, Built-in MPPT, Max Solar Charge Current 150A, Max AC Charge Current 150A, USB/RS232/RS485/WIFI/Dry-Contact, 147X432X553, 18.4kg
Power Pure Sine Wave Inverter
Feature
- Status indication with RGB lights
- Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS
- Replaceable fan design for ease of maintenance
- Battery independent design
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Compatible to Utility Mains or generator input
- Built-in anti-dust kit
- Parallel operation with 6 units
- Dual outputs selected as either programmable output or generator input
Specifications
- MODEL : Axpert MAX E-11000
- Rated Power : 11000VA/11000W
- Parallel Capability : YES, 6 units
INPUT
- Voltage : 230 VAC
- Selectable Voltage Range : 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances)
- Frequency Range : 50 Hz/60 Hz (Auto sensing)
OUTPUT
- AC Voltage Regulation (Batt. Mode) : 230VAC ± 5%
- Surge Power : 22000VA
- Efficiency (Peak) : 93%
- Transfer Time : 10 ms (For Personal Computers), 20 ms (For Home Appliances)
- Waveform : Pure sine wave
- No Load Power Consumption : <70W
- Dual Outputs : Yes
BATTERY
- Battery Voltage : 48 VDC
- Floating Charge Voltage : 54 VDC
- Overcharge Protection : 63 VDC
SOLAR CHARGER & AC CHARGER
- Solar Charger Type : MPPT
- Maximum PV Array Power : 11000W
- MPPT Range @ Operating Voltage : 90 ~ 450 VDC
- Maximum PV Array Open Circuit Voltage : 500 VDC
- Maxmum Solar Charge Current : 150A
- Maximum AC Charge Current : 150A
- Maximum Charge Current : 150A
PHYSICAL
- Dimension, D x W x H (mm) : 147.4 x 432.5 x 553.6
- Net Weight (kgs) : 18.4
- Communication Interface : USB/RS232/RS485/WiFi/Dry-contact
OPERATING ENVIRONMENT
- Humidity : 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature : -10°C to 50°C
- Storage Temperature : -15°C to 60°C
