XY-R01G-10-DIN

Name: XY-R01G-10-DIN - Communica [Part No: XY-R01G-10-DIN]
Brand: Xytron
SKU: XY-R01G-10-DIN
Price: 891.95 ZAR
Availability: OutOfStock

SKU: XY-R01G-10-DIN

BRAND: Xytron

Sold Out
R 1,025.74_{(inc VAT)}
R 891.95_{(ex VAT)}

Collections: Power

Type: Surge Protection

Category: PoE Surge Protector

Indoor DIN Rail 10 Gigabit PoE 4 Level Surge Protector. Input 44 -57VDC (Max 60V) @ 1A for 2 pairs/ 2A for 4 Pairs (Max. 110W)10/100/1000Mbps. 10KV Lightning Protection/20KA Peak surge -40℃ to 85℃. IP40

10 Gigabit PoE 4 Level Surge Protector

Overview

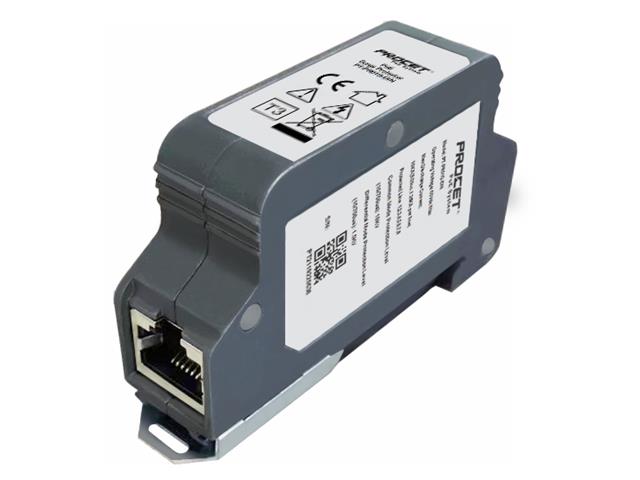

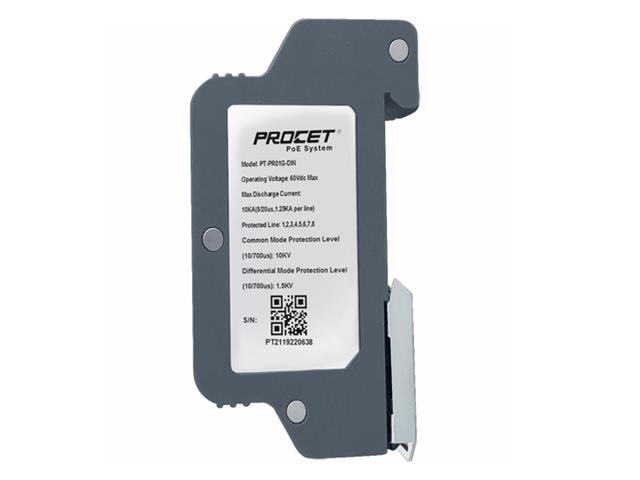

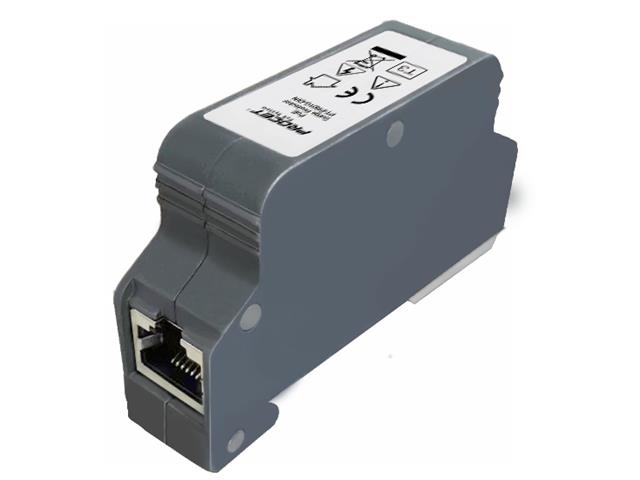

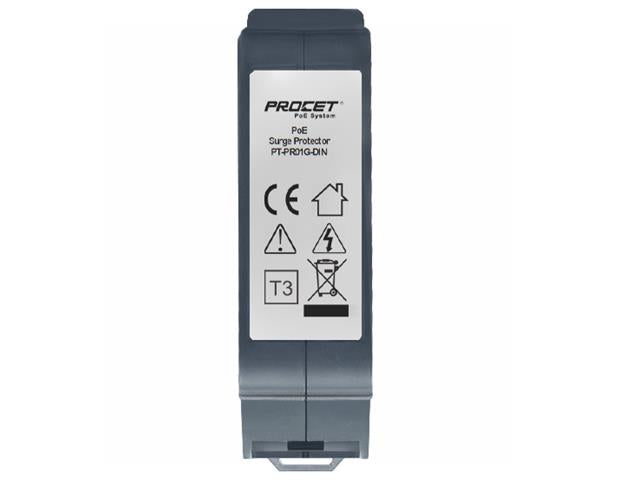

PT-PR01G-10-DIN is a single-port PoE surge protector, which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines network signals and provides surge protection for PoE wires. The PoE surge protector can bear 10KA Peak Surge Current. 20KV(10/700us) common mode surge voltage and 1.5KV(10/700us) differential mode surge voltage. It supports not only 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T. It is ideal to well protect your device against surge damage.

It is designed for indoor use with a Zinc-alloy shell, which works with 60Vdc Max voltage and operates from -40℃ to 85℃. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.

This model has equipped a standard DIN rail mounting bracket, which can easily jam into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it only used on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.

Specifications

Parameter	Description
Key Features	10G Din Rail PoE Surge Protector 120W 20KV 10KA Zinc alloy case
Part Number	PT-PR01G-10-DIN
Ports condition	RJ45 PoE Port*2
PoE output	120W
Data rates	10G
Operating Voltage	60Vdc(Max)
Operating Power	PoE 120W(Max)
Regulatory Compliance	802.3af/at/bt/PoE++ RoHS Compliance WEEE Compliance
Working Environment	Operating Temperature: -40℃ to 85℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
PoE Surge Protection	Max Discharge Current: 10KA(8/20us,1.25KA per line) Protected Line: 1,2,3,4,5,6,7,8 Common Mode Protection Level(10/700us): 20KV Differential Mode Protection Level(10/700us): 1.5KV Insertion Loss @10MHz/100MHz：-1db Return Loss @10MHz/100MHz: -20db Response Time：5ns
Mechanical Characteristics	Size: 77.2X 45X 19mm Weight: 115g（0.25lb）
Safety Approvals	CE

Downloads

Datasheet - XY-R01G-10-DIN

Additional Information

Device	Protector
Type	10 Gigabit \| PoE \| 4 Level Surge

Protect your network with the XY-R01G-10-DIN 10 Gigabit PoE Surge Protector. Designed for indoor use, this robust device features a durable zinc alloy shell and offers up to 120W of power with 20KV surge protection, ensuring your equipment stays safe from electrical damage. Its easy DIN rail installation and compatibility with 10/100/1000Mbps and 2.5/5/10GbE speeds make it a must-have for reliable network performance.
